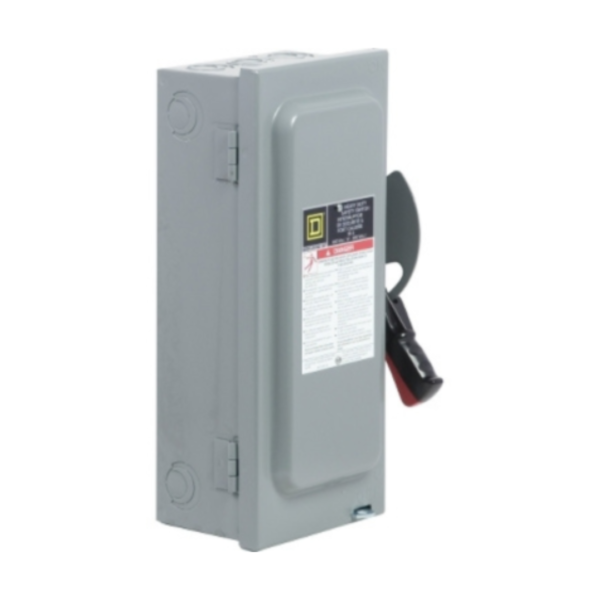

30A 600V DISCONNECT FUSIBLE 3PH CH361/VH361 SQUARE D

Model: CH361

SKU: 3694

In Stock

SKU: 3694 Categories: 3 PHASE, Disconnect Switch Fusible

Main

Product	Single Throw Safety Switch
Disconnect Type	Fusible disconnect
Number of Poles	3
Electrical Connection	Lugs
Duty Rating	Heavy duty

Complementary

Line Rated Current	30 A
Factory Installed Neutral	None
Mounting Type	Surface
Voltage Rating	600 V AC/DC
Motor power hp	5 hp at 480 V AC 50...60 Hz for 3 phases motors 15 hp at 480 V AC 50...60 Hz for 3 phases motors 7.5 hp at 600 V AC 50...60 Hz for 3 phases motors 20 hp at 600 V AC 50...60 Hz for 3 phases motors 5 hp at 250 V DC 15 hp at 600 V DC
Wire Size	AWG 12...AWG 6 aluminum AWG 14...AWG 6 copper
Tightening torque	45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) AWG 6) 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) AWG 8) 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) AWG 14...AWG 10)
Height	14.6 in (370.84 mm)
Width	7.55 in (191.77 mm)
Depth	4.87 in (123.70 mm)

Environment

Certifications	CSA
Enclosure Rating	NEMA 1 galvannealed steel

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.30 in (13.462 cm)
Package 1 Width	7.80 in (19.812 cm)
Package 1 Length	16.10 in (40.894 cm)
Package 1 Weight	8.04 lb(US) (3.647 kg)

Additional information

brands	SQUARE D
