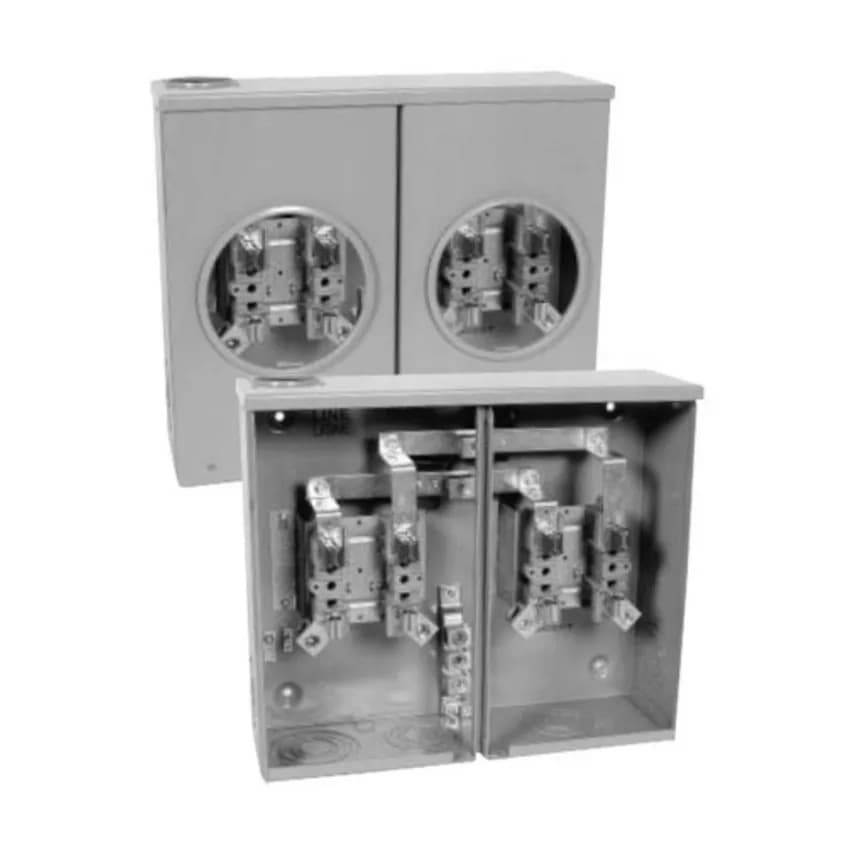

Meter Base 2 Gang 200A 600V 4 Jaws Main 200A Per Position Hydel (H22R)

Description

4 Jaw Meter Socket, Factory Bussed 200 Amp Main Service, 2 Positions Total, 200 Amp 600Volts per Position. Overhead / Underground Combination Style.

Specification	Description
Stock Code:	H22R
Brand:	Hydel
Family:	H22 Series - 2 Position - 200 Amp/Position, 200 Amp Mains
Voltage (V):	600V
Amp Rating:	200 Amp Mains, 200 Amp per Position / Gang
Width (in):	17-3/4"
Height (in):	15-1/8"
Depth (in):	5-3/8"
Phase:	Single Phase
Enclosure Rating:	NEMA 3R (Outdoor-rated, rainproof)
Sold Separately:	Order SXC hubs separately
Mounting:	Approved for overhead or underground use
Wire Gauge:	6 – 250 AWG
UL Listed:	CSA

Brand	HYDEL
