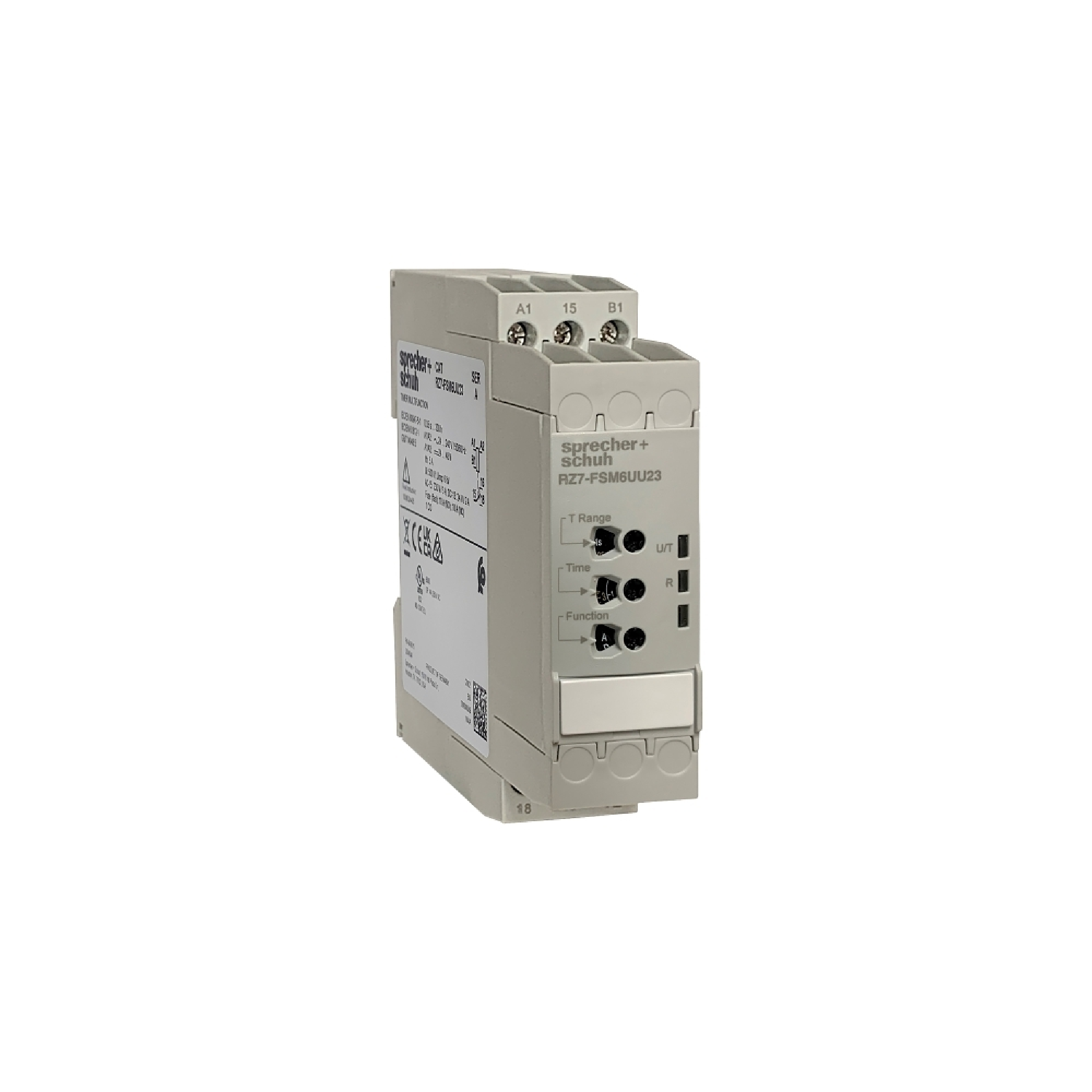

Multi Function Time Relay G Control Sprecher Schuh (RZ7-FSM6UU23)
SKU: 2463 · Model Number: RZ7-FSM6UU23
$99.99/each · CAD
Delivery
Pick up
5118 Everest Drive
In Stock
1
Fast Delivery
Ships in 1 to 2 days
Curbside Pickup
Order online
Secure Payment
Protected checkout
- Brand
- Sprecher Schuh
- SKU
- 2463
- Model Number
- RZ7-FSM6UU23
- Primary brand
- Sprecher+Schuh
- Order code / Manufacturer SKU
- RZ7-FSM6UU23
- Manufacturer product status
- Commercialized
- Manufacturer description
- Timing Relay 22.5 mm
- Voltage type for actuating
- AC/DC
- Rated control supply voltage Us at DC
- 24-48 V
- Rated control supply voltage Us at AC 60 HZ
- 24-240 V
- Rated control supply voltage Us at AC 50HZ
- 24-240 V
- Number of outputs, delayed, change-over contact
- 1
- Nominal current
- 5 A
- Rated operation current Ie at DC -13, 24 V
- 2 A
- Type of electric connection
- Screw connection
- Function delay-on energization
- No
- Function delay on de-energization
- No
- Function floating contact on energization
- No
- Function floating contact on de-energization
- No
- Function star-delta
- No
- Function pulse shaping
- No
- Function flashing, starting with pause, fixed time
- No
- Function flashing, starting with pulse, fixed time
- No
- Clock function, starting with pause, variable
- Yes
- Clock function, starting with pulse, variable
- Yes
- Time range
- 0.05-1080000 s
- Time setting accuracy
- 6 %
- Power supply reset time
- 80 ms
- Power consumption
- 16 VA
- Electrical lifespan (control contacts)
- 100000 c (contacts)
- Shipping weight
- 0.25 lb (0.11 kg)
- Package dimensions (L × W × H)
- 3.5 × 0.87 × 2.99 in (8.9 × 2.2 × 7.6 cm)
- Availability
- In stock
- Price
- $99.99 CAD
