POWER BAR PRE INSULATED CONNECTORS #1/0-14AWG IT-1/0C POLARIS

Model: IT-1/0C
SKU: 3450
In Stock
SKU: 3450 Categories: ,

Description

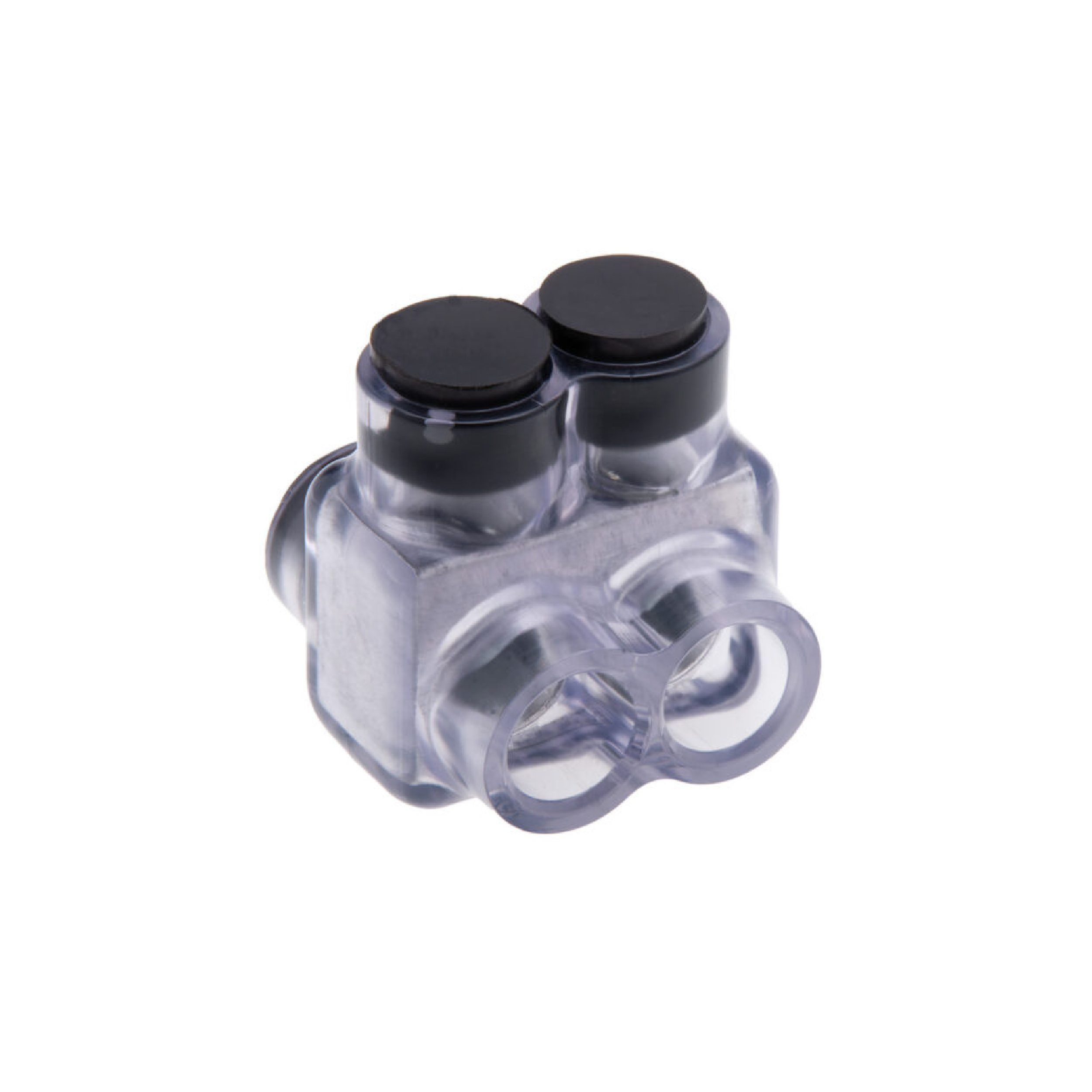

Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and chemical-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Pre-filled Oxide Inhibitor: Both dual-sided entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Professional Performance: The durable layer of insulation on each Polaris connector is abrasion and chemical-resistant for reliable performance
Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Clear
GTIN 662381996411
UPC 662381996411
EAN 662381996411
UNSPSC 39121409
Origin Country US
Certifications cULus, Meets NEC 230.46 Suitable for Line Side of Service
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 135
Cu Conductor Max Amp 170
Conductor Cu Size Range 1/0 AWG – 14 AWG
Conductor Al Size Range 1/0 AWG – 12 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 2
Hex Wrench Size 3/16
Env Temp Cold Temperature rated to -45C
Assortment Clear Coated Pre-Insulated Connectors
Max Torque 80
