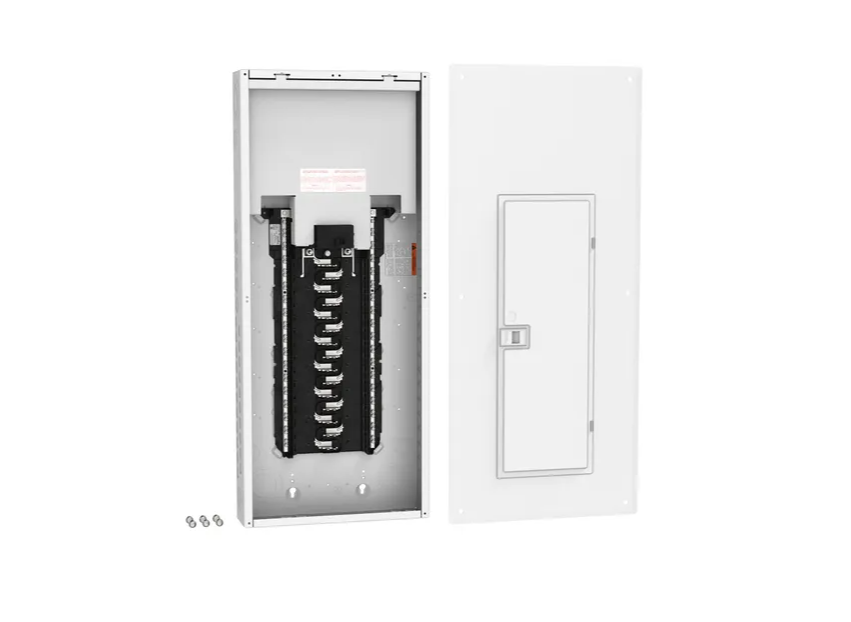

100A MAIN BREAKER PANEL 30/60 CIRCUIT 1PH CHOM3060M100GC HOMELINE

The CHOM load center is a single-phase, CSA-certified unit designed for residential and light industrial use. It features a 100 A plug-on neutral main breaker with a 22 kA interrupting capacity and supports HOM breakers, GFCIs, and AFCIs. Housed in a NEMA 1 indoor enclosure, it offers 30 spaces, lug-type connections for 6 AWG to 2/0 AWG Cu/Al wire, and includes an uninstalled ground bar. The white combination cover allows flush or surface mounting. Dimensions are 33.78″ H × 14.25″ W × 3.75″ D.
