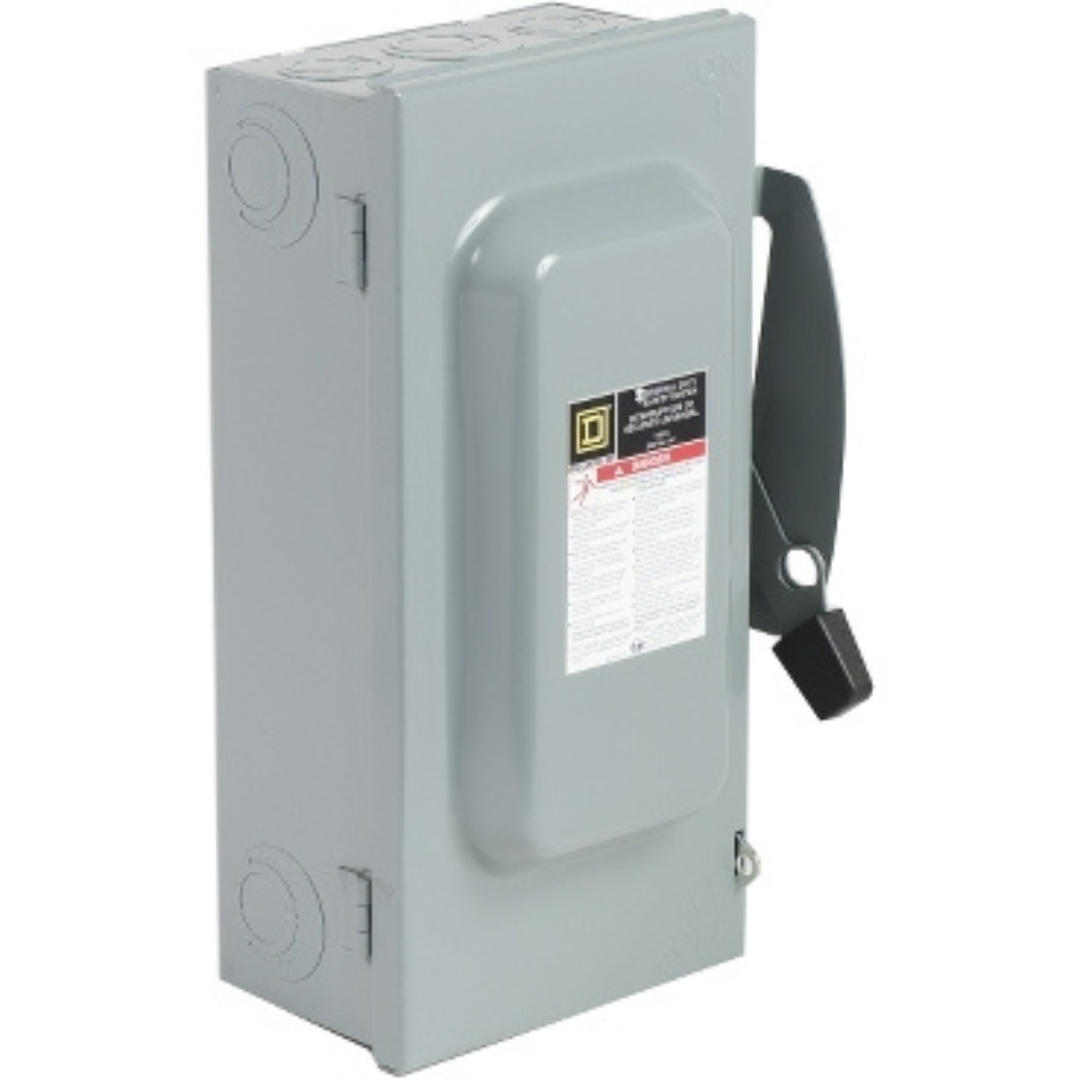

100A 240V DISCONNECT SW FUSIBLE 2PH SCH-CD223N SQUARE D

Model: SCH-CD223N
SKU: 4061
In Stock
SKU: 4061 Categories: ,

Description

General Duty Safety Switch

Features:

  • Application: Designed for residential and commercial applications where durability and economy are prime considerations
  • Typical Loads: Suitable for lighting, air conditioning, and appliances
  • Service Equipment: Can be used as service equipment when equipped with a factory-installed neutral assembly or a field-installed service grounding kit

Specifications:

  • Certification: UL® Listed, meets or exceeds NEMA® Standard KS1
  • Type: Single Throw Safety Switch
  • Current Rating: 100A
  • Enclosure Protection: NEMA 1, suitable for indoor applications
  • Fuse Type: Fusible disconnect switch with a factory-installed neutral
  • Poles: 2-pole
  • Voltage Rating: 240VAC
  • Short Circuit Rating: 100kA
  • Mounting: Surface mounted
  • Electrical Connections: Lugs accept:
    • Copper: AWG 14 to AWG 1
    • Aluminum: AWG 12 to AWG 1
  • Dimensions:
    • Height: 17.5 inches
    • Width: 10.56 inches
    • Depth: 6.5 inches
  • Warranty: Comes with an 18-month warranty
Main
product or component type Single Throw Safety Switch
Series name General duty
Complementary
[In] rated current 100 A
Device composition Neutral (factory installed)
disconnector device type Fusible disconnect
Short-circuit current 100 kA maximum cartridge
device mounting Surface
Number of poles 2
Electrical connection Lugs
[Ue] rated operational voltage 120/240 V AC
Motor power hp 7.5 hp at 240 V AC 50...60 Hz for 1 phase motors
15 hp at 240 V AC 50...60 Hz for 3 phases motors
15 hp at 240 V AC 50...60 Hz for 1 phase motors
30 hp at 240 V AC 50...60 Hz for 3 phases motors
AWG gauge AWG 12...AWG 1/0 aluminum
AWG 14...AWG 10 copper
Tightening torque 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) AWG 14...AWG 10)
40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) AWG 8)
45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) AWG 6...AWG 4)
50 lbf.in (5.65 N.m) AWG 3...AWG 1)
Height 17.5 in (444.50 mm)
17.5 in (444.50 mm)
Width 10.56 in (268.22 mm)
10.56 in (268.22 mm)
Depth 6.5 in (165.10 mm)
6.5 in (165.10 mm)
Environment
Product certifications CSA
NEMA degree of protection NEMA 1 galvannealed steel
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.40 in (18.796 cm)
Package 1 Width 10.70 in (27.178 cm)
Package 1 Length 19.90 in (50.546 cm)
Package 1 Weight 15.14 lb(US) (6.867 kg)

Additional information

brands

SQUARE D
