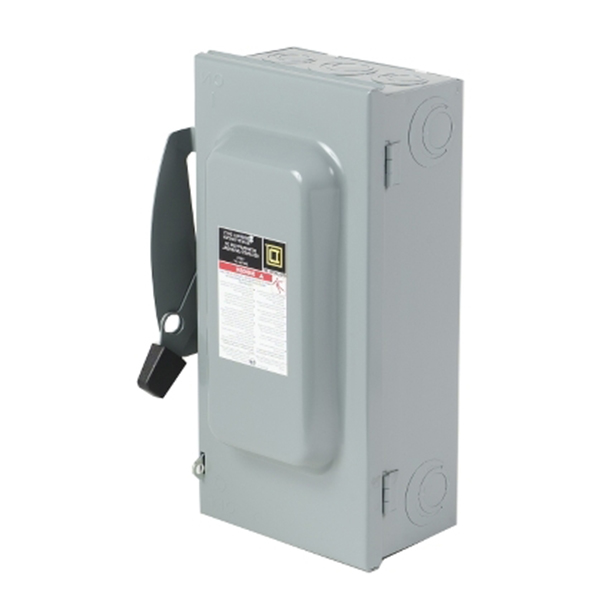

100A 600V 3PH DISCONNECT NON-FUSIBLE CHU363 SQUARE D

100A 600V 3PH DISCONNECT NON-FUSIBLE CHU363 SQUARE D

Model: CHU363

SKU: 3605

In Stock

SKU: 3605 Categories: DISCONNECT SWITCHES NON FUSIBLE, Safety Switches

Product	Single Throw Safety Switch
Disconnect Type	Non-fusible disconnect
Number of Poles	3
Electrical Connection	Lugs
Duty Rating	Heavy duty

Complementary

Line Rated Current	100 A
Factory Installed Neutral	None
Mounting Type	Surface
Voltage Rating	600 V AC/DC
Motor power hp	20 hp at 240 V AC 50...60 Hz for 1 phase motors 40 hp at 240 V AC 50...60 Hz for 3 phases motors 40 hp at 480 V AC 50...60 Hz for 1 phase motors 75 hp at 480 V AC 50...60 Hz for 3 phases motors 40 hp at 600 V AC 50...60 Hz for 1 phase motors 100 hp at 600 V AC 50...60 Hz for 3 phases motors 20 hp at 250 V DC 50 hp at 600 V DC
Wire Size	AWG 12...AWG 1/0 aluminum AWG 14...AWG 1/0 copper
Tightening torque	50 lbf.in (5.65 N.m) AWG 3...AWG 1) 45 lbf.in (5.08 N.m) AWG 6...AWG 4) 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) AWG 8) 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) AWG 14...AWG 10) 40 lbf.in (4.52 N.m) AWG 8) 35 lbf.in (3.95 N.m) AWG 14...AWG 10)
Height	21.25 in (539.75 mm)
Width	10.25 in (260.35 mm)
Depth	6.38 in (162.05 mm)

Environment

Certifications	CSA
Enclosure Rating	NEMA 1 galvannealed steel

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.200 in (18.288 cm)
Package 1 Width	10.700 in (27.178 cm)
Package 1 Length	23.50 in (59.69 cm)
Package 1 Weight	16.69 lb(US) (7.571 kg)

Additional information

brands	SQUARE D
