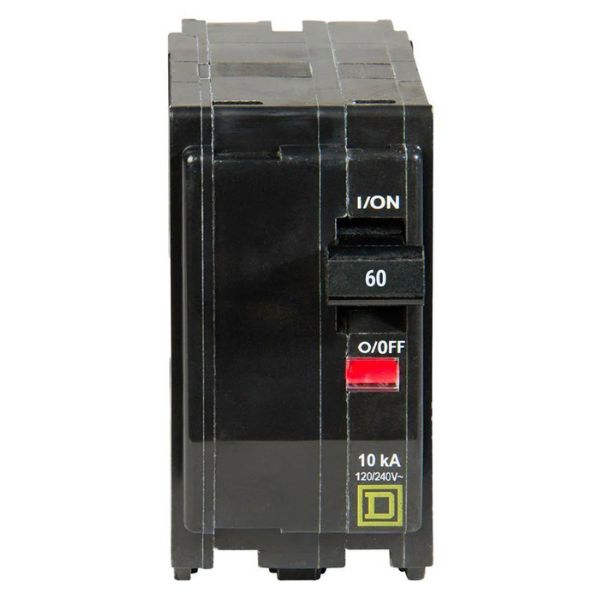

60A DOUBLE POLE CIRCUIT BREAKER QO260 SQUARE D

Description

The QO double-pole breaker offers reliable protection in a compact, plug-in design for QO loadcenters.

Specification	Details
Part Number	QO260
Type	Standard (Thermal-Magnetic)
Poles	2-pole
Amperage Rating	60A
Voltage Rating	120/240V AC, 48V DC
Interrupting Rating	10 kA (120/240V AC), 5 kA (48V DC)
Mounting Type	Plug-in (for QO load centers, NQ and NQOD panelboards, OEM mounting bases)
Wire Size	8 AWG to 2 AWG (Copper or Aluminum)
Certifications	UL Listed, CSA Certified, HACR Rated, RoHS Compliant
Dimensions (H x W x D)	3.12 in (79 mm) x 1.50 in (38 mm) x 2.91 in (74 mm)
Enclosure Material	Thermoplastic

Brand	SQUARE D
