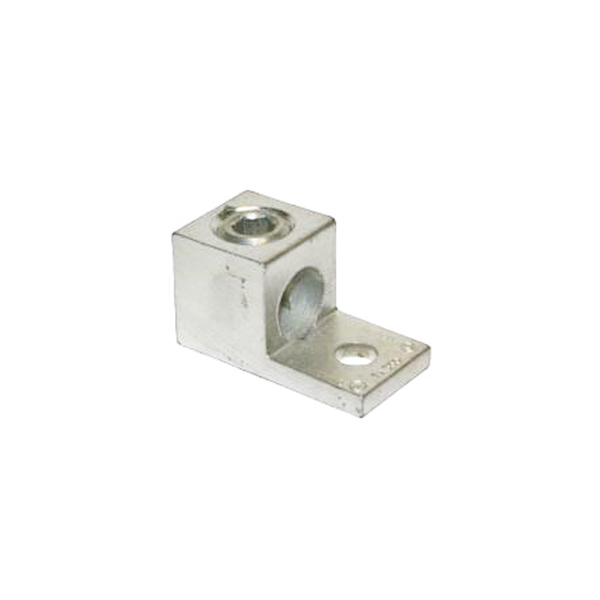

ALUMINUM MECHANICAL LUG 14-1/0 AWG (AL/CU) LA-0 TECHSPAN

Model: LA-0

SKU: 2033

In Stock

SKU: 2033 Categories: Cable Management, LUGS

Specification	Details
Model	LA0
Conductor Size	14 AWG to 1/0 AWG (Aluminum/Copper)
Conductor Type	Aluminum and Copper
Bolt Hole Count	1
Bolt Hole Diameter	17/64 inches (approximately 6.75 mm)
Material	High-strength Aluminum Alloy
Finish	Electro-Tin Plated
Dimensions (L x W x H)	1-15/32" x 5/8" x 25/32" (approximately 38.1 mm x 15.9 mm x 19.8 mm)
Voltage Rating	600 VAC
Reusability	100% reusable with a hex wrench
Design Features	Compact, lightweight, maximum conductivity, no special tools required
Applications	Suitable for both aluminum and copper conductors

Additional information

Brand	TECHSPAN
