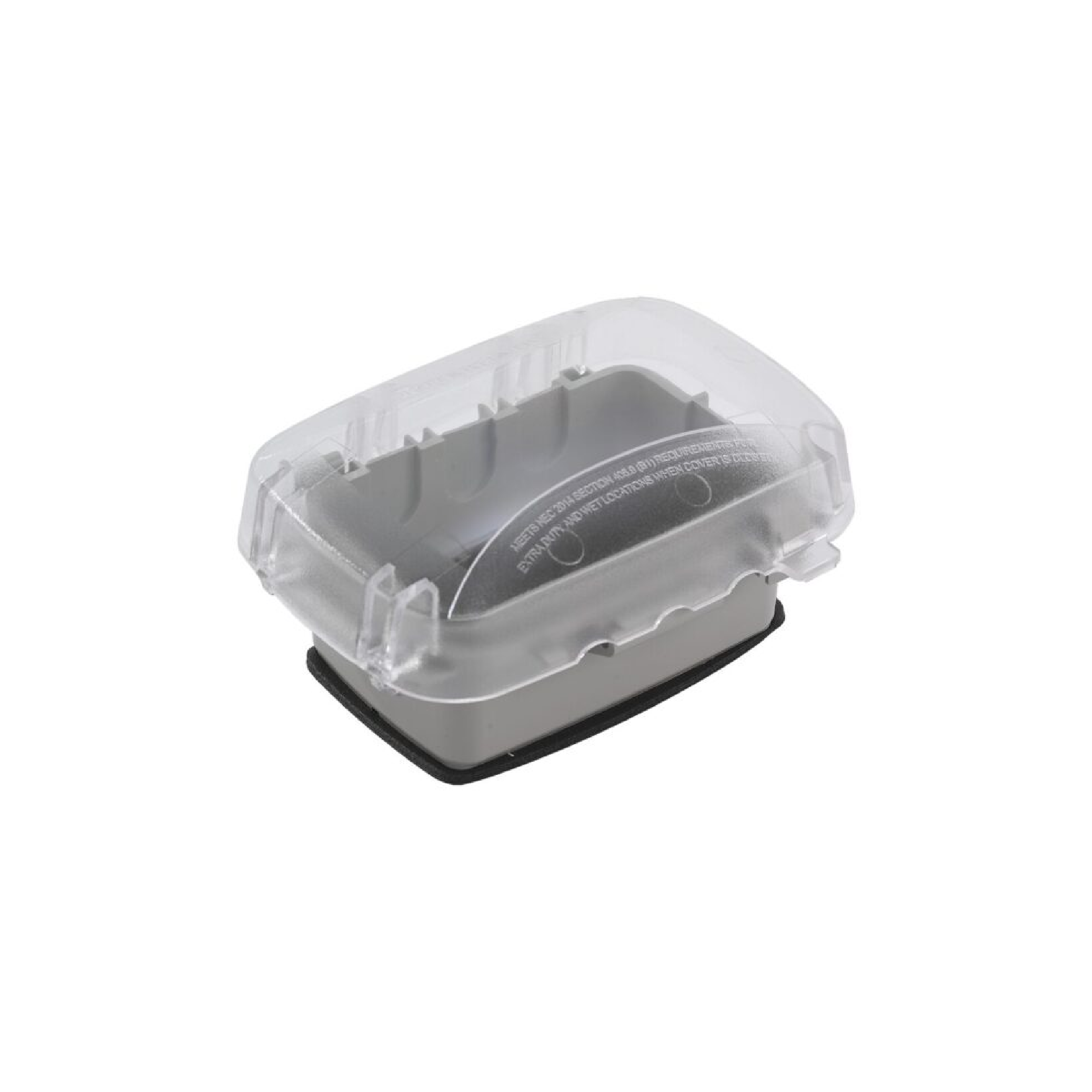

Bubble Box 1G H.D.(WP5100C) INTERMATIC

Model: WP5100C

SKU: 1223

In Stock

Description

Material: Made of durable plastic, ensuring longevity and protection from the elements.
Extra-Duty Rated: Designed to withstand harsh weather conditions, providing reliable protection for outdoor electrical outlets.
Easy Installation: Includes all necessary components for installation, such as a gasket, mounting screws, base, cover assembly, and inserts, making it simple to set up.
Comprehensive Kit: Comes with a complete set of parts to meet the needs of a variety of applications, ensuring versatility and convenience.
Weatherproof Protection: Offers robust protection for in-use electrical outlets, keeping them safe from rain, snow, and other weather conditions.

Specification	Details
Color	Clear, Gray
Hinge Direction	Vertical/Horizontal
Accepted Cord Size Max	1x12 AWG, 2x14 AWG
CA Prop65 Message	This product is in compliance with Prop65
Country of Origin	Mexico
Cover Gasket	3mm
Enclosure Type	Outdoor type 3R plastic
Has Reinforced Hinge Pin	Yes
Insert Types Included	WP17
Material	UV Stabilized Polycarbonate
RoHS Certification	N
Warranty Period	1-Year limited
Weatherproof Cover Material	UV Stabilized Plastic
Auto Start/Stop	FALSE
Check Valve	FALSE
DOE Compliant	FALSE
Freeze Protection	FALSE
Leaf Screen	FALSE
Lockable Hasp Maximum Diameter (in)	1/4
Lockable Hasp Maximum Diameter (mm)	6
Product Depth (in)	2.75
Product Depth (mm)	70
Product Height (in)	6.33
Product Height (mm)	160.3
Product Width (in)	4.66
Product Width (mm)	119.1
Self Priming	FALSE
Submersible	FALSE
UL Certification	CULUS
Unit Carton Height (in)	6.5
Unit Carton Length (in)	4.75
Unit Carton Weight (lb)	0.5
Unit Carton Width (in)	2.75
Units Per Pallet	900
UV Resilient Outdoor Enclosure	FALSE

Brand	INTERMATIC
