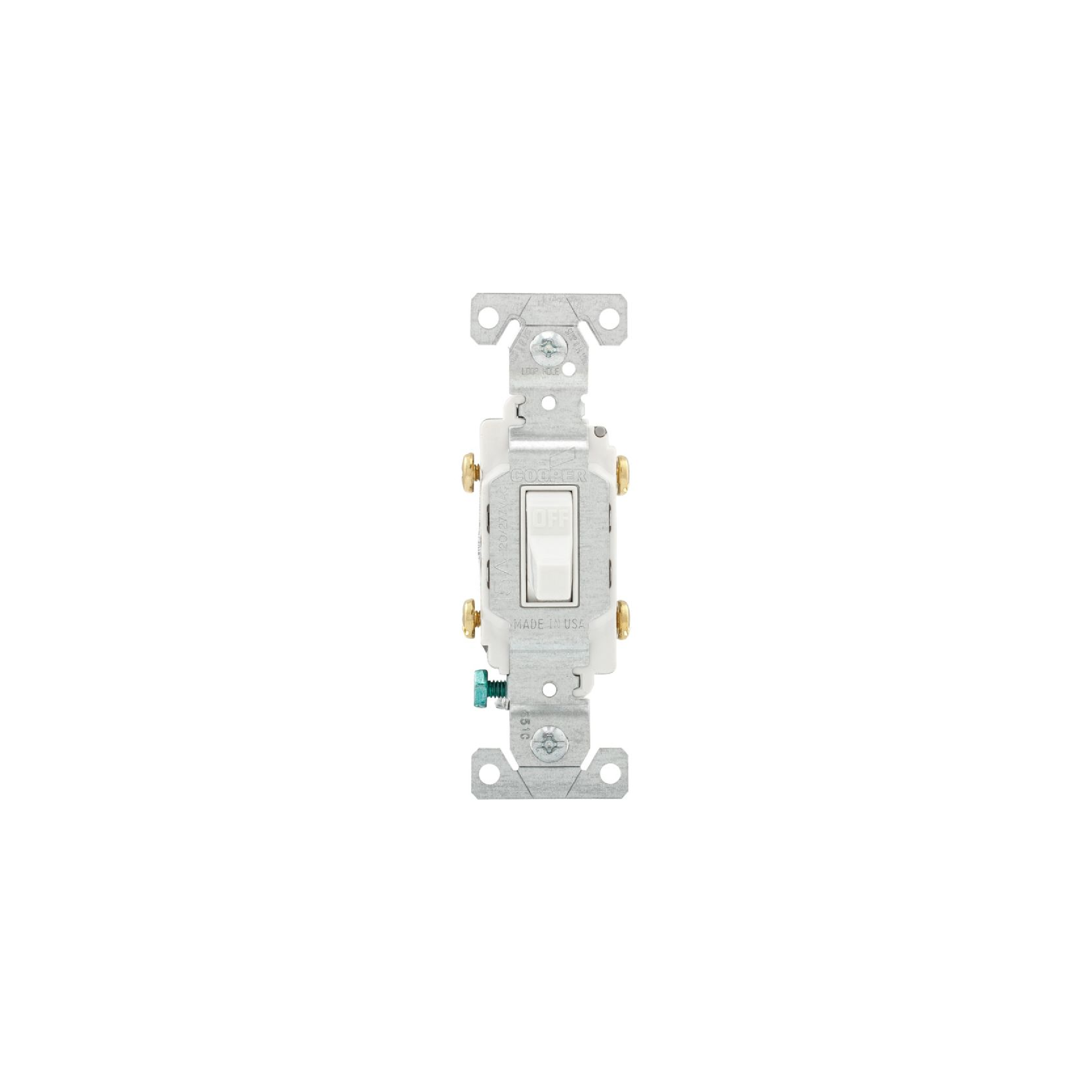

Name: Commercial White Toggle Switch 15A 2 Pole 120-277V Eaton (CS215W)
SKU: 2535
Availability: InStock

Description

Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Side wire, Screw, White, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Double-Pole, Dual-pole, Brass, PVC

Specification	Details
Product Name	Eaton Commercial Grade Toggle Switch
Catalog Number	CS215W
Product Length / Depth	1.3 in
Product Height	4.2 in
Product Width	0.902 in
Product Weight	0.15 lb
Certifications	cULus Listed, NOM, Federal Specification Classification 6241 05
Type	Toggle Switch
Amperage Rating	15A
Voltage Rating	120/277 V
Number of Poles	Two-pole
Application	Commercial
Wiring Method	Side Wire
Switch Type	Two-pole
Mounting Method	Flush
Connector Type	Screw
Load Type	INC, MLV, HAL, Fan, CFL, FLR, ELV, LED, Motor Control
Material	PVC
Allowable Wire Size	#14–10 AWG
Terminal Enclosure Material	Brass
Color	White
