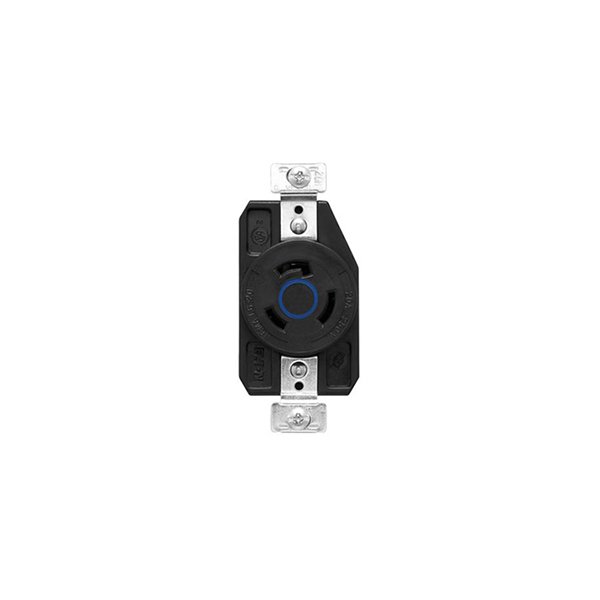

Twist Lock Recep Nema 20A 250V L6-20R Eaton (AHCL620R)

Description

Eaton Arrow Hart Color Coded Locking Receptacle, #14-8 AWG, 20A, Industrial, 250V, Back and Side, Blue, Black, Ultra grip, Glass filled Nylon, L6-20, Two-pole, Three-wire, Glass-filled Nylon, -40°C (w/o impact) to 70°C (-40°F to 158°F)

Specification	Details
Product Name	Eaton Arrow Hart Color Coded Locking Receptacle
Catalog Number	AHCL620R
Product Length / Depth	1.62 in
Product Height	3.64 in
Product Width	1.03 in
Product Weight	0.33 lb
Compliances	RoHS Compliant, NAFTA
Certifications	UL Listed, CSA Certified, NOM
Federal Specification Classification	6233 01
Type	Locking Receptacle
Special Features	Voltage Color Coding
Amperage Rating	20A
Voltage Rating	250 V
NEMA Configuration	L6-20
Application	Industrial
Number of Poles	Two-Pole
Number of Wires	3
Wiring Method	Back and Side
Allowable Wire Size	#14–8 AWG
Torque Rating	20 lbf-in
Design Type	Ultra Grip
Material	Glass-Filled Nylon
Face / Body Material	Glass-Filled Nylon
Color	Blue / Black
Operating Temperature	-40 to 70 °C (-40 to 158 °F)
