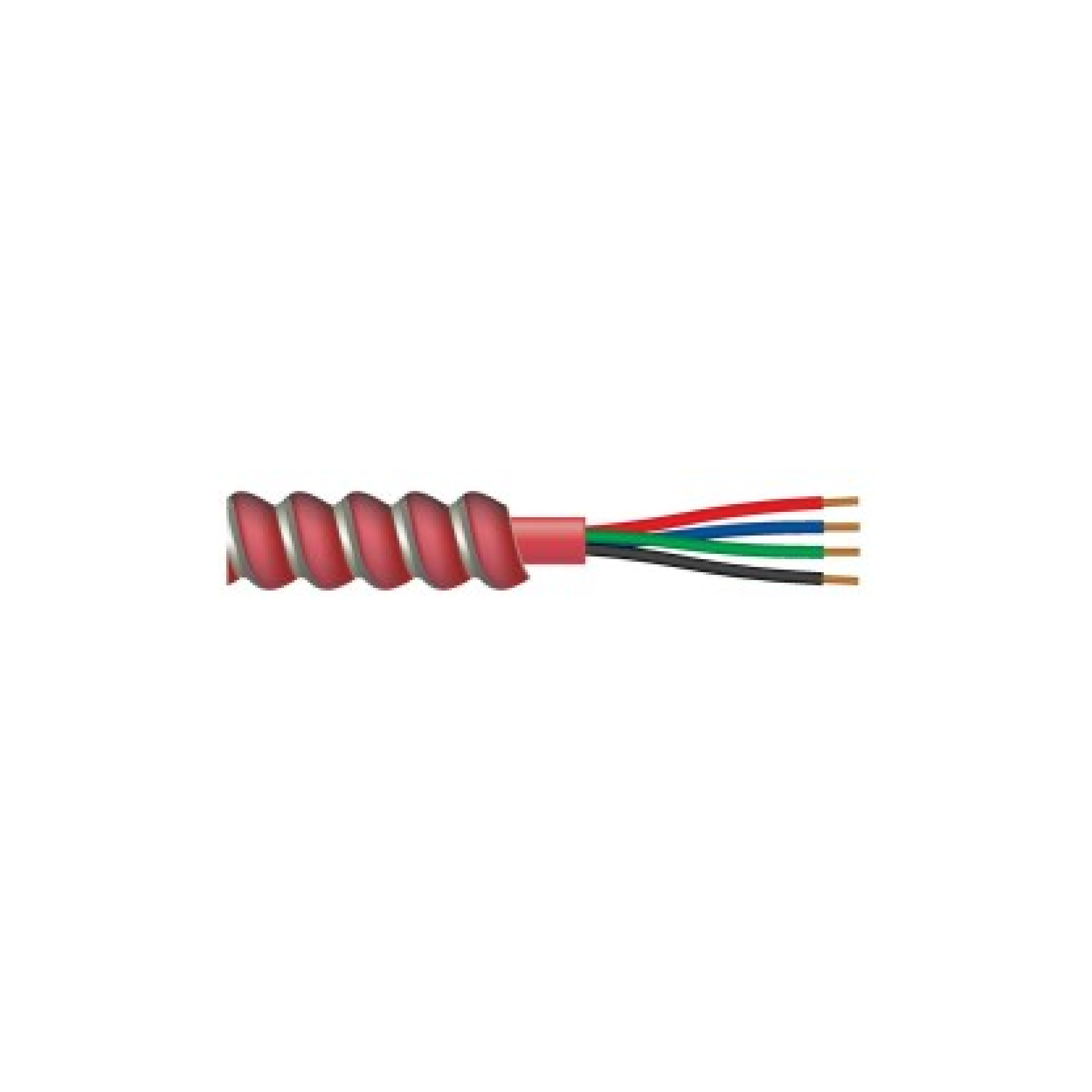

WIRE 18/3 FIRE ALARM ARMORED SHIELD RED

Description

Solid or stranded
Soft bare copper conductors.
105°C, 300 Volts.
RoHS

APPLICATIONS
For use in wiring low voltage heating and air conditioning controls, bell and annunciator systems. For use in damp or dry locations.

SPECIFICATIONS
• CSA Spec. C22.2, No. 35
• File Listing: LL90458

Armor Material	Aluminum
Conductor Material	Copper
Diameter	0.451" (11.4554 mm)
Direct Burial	No
Flame Spread Rating	FT4
Inner Insulation Material	PVC
Jacket Material	PVC
Manufacturer	WIRE
Manufacturer Product Code	12002517
Maximum Operating Temperature	105
Maximum Operating Voltage	300
Minimum Operating Temperature	-30
Number of Conductors	3
Overhead Installation	No
Packing Type	Reel
Standards	CSA
Unit of Measure	M
Wet Location	No
Wire And Cable Type	Fire Alarm
Wire Gauge	18

brands	NORTHERN CABLES
