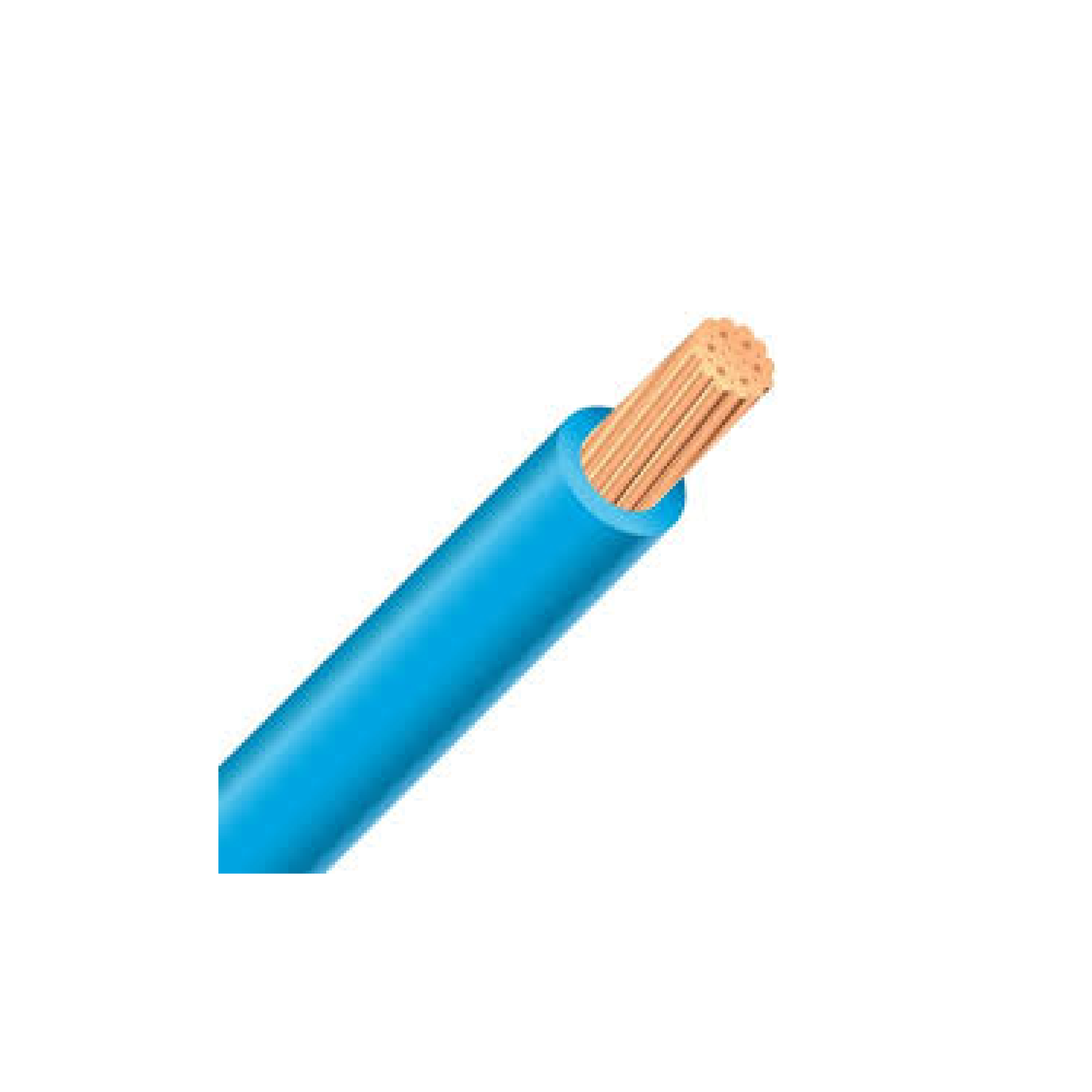

Name: Wire RW90 #12 STR Copper Blue
SKU: 2542
Availability: InStock

Specification	Details
Brand Name	Approved Vendor
Item Name	RW90 Building Wire
Type	Sunlight-Resistant
Wire Gauge Size	12 AWG
Conductor Type	Stranded
Number of Strands	7
Length	300 m
Conductor Material	Copper
Insulation Material	Cross-Linked Polyethylene (XLPE)
Jacket Color	Blue
Voltage Rating	600 V
Outside Diameter	0.148 in
Insulation Thickness	0.03 in
Amperage Rating	35 A at 75°C, 40 A at 90°C (Open Air); 25 A at 75°C, 30 A at 90°C (Cable in Conduit)
Weight per 1000 ft	25 lb
Temperature Rating	-40°C to 90°C
Standards	CSA Specification C22.2 No. 38, CSA FT4 Flame Test, CSA Certified (LL90458), Lead-Free & RoHS Compliant
Application	For open wiring and use in raceways (except cable troughs and ventilated flexible cableways) in dry or wet locations

Additional information

Brand	SOUTHWIRE
