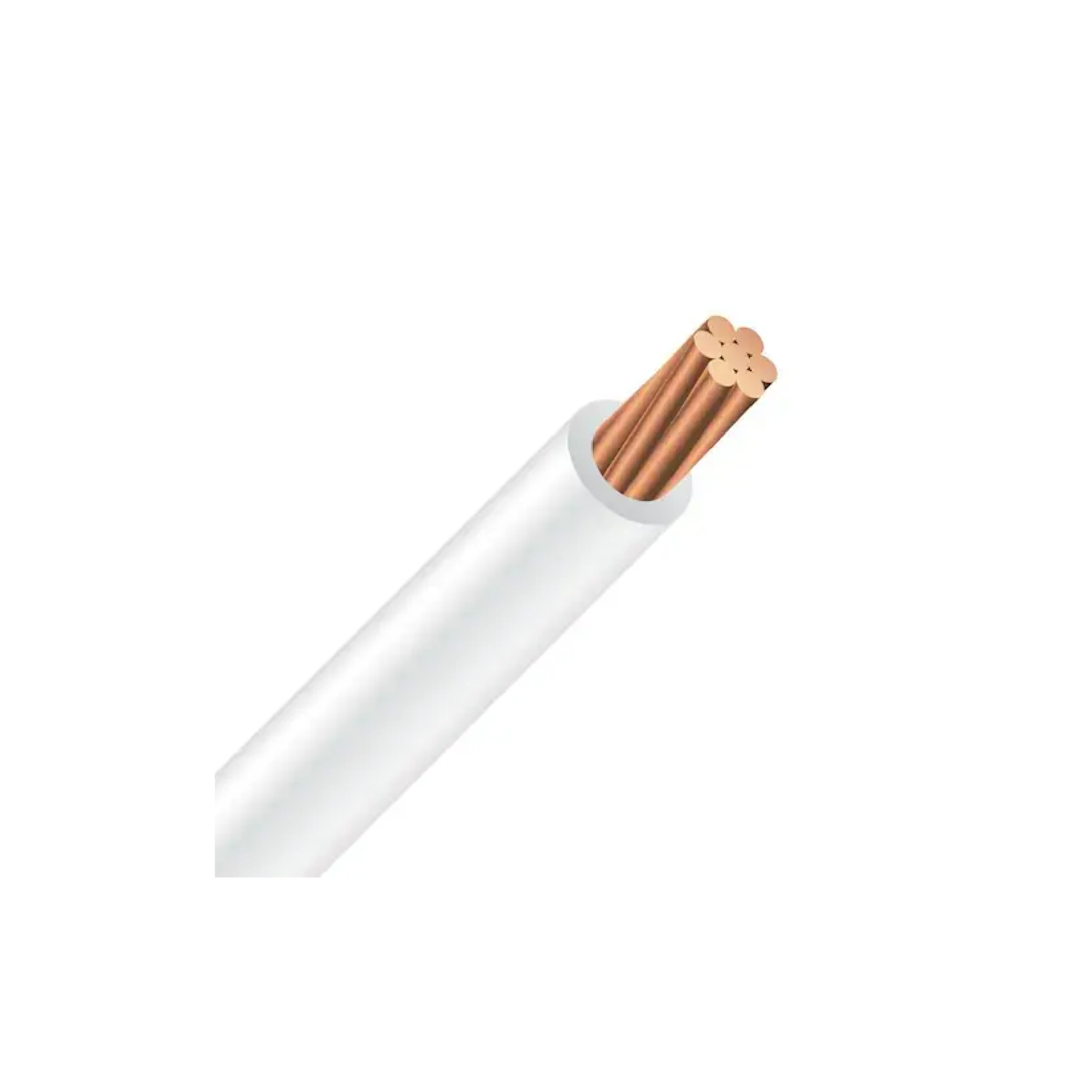

Wire T90 #10G STR Copper White

Specification	Details
Brand Name	Approved Vendor
Item Name	T90 Building Wire
Wire Gauge Size	10 AWG
Conductor Type	Stranded
Conductor Material	Copper
Insulation Material	Thermoplastic
Jacket Material	Nylon
Jacket Color	White
Voltage Rating	600 V
Amperage Rating	55 A at 60°C, 65 A at 75°C, 75 A at 90°C
Weight per 1000 ft	95 lb
Standards	ASTM B3, B8, B787; CSA C22.2 No.75 LL90458; -25°C Cold Bend Test Compliant; Canadian Electrical Code; CSA FT-1 Flame Test; UL, cUL Listed & CSA Certified
Application	For wet locations, gasoline and oil resistant II applications (not to exceed 60°C)
