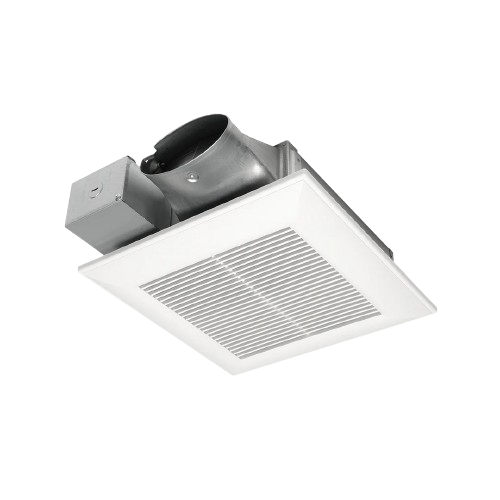

PANASONIC FAN 50/80/100CFM 0.3/0.5/0.9S FV0510VS1

Model: FV-0510VS1

SKU: 1587

In Stock

SKU: 1587 Categories: EXHAUST FANS, Heating & Ventilation, PANASONIC

Description

Adjustable Speed Selector:

Customizable Airflow: Allows for selection of 50, 80, or 100 CFM (Cubic Feet per Minute) to suit different ventilation needs.

Advanced DC Motor with Intelligent Flow Technology:
- Efficiency: The DC motor provides high efficiency, reducing energy consumption and lowering operating costs.
- Intelligent Flow Technology: Automatically adjusts the fan speed to maintain the selected airflow, ensuring optimal performance.
Slim Housing Design:
- Compact Profile: The fan features a housing depth of only 3-3/8 inches, making it ideal for installation in confined spaces.
Easy Installation Bracket:
- Convenient Setup: Equipped with a unique L-shaped bracket, the fan is designed for straightforward and secure installation.
Optimized Duct Design:
- Space-Efficient: The 4-inch oval duct allows the fan to fit seamlessly into 2 x 4 wall constructions while maintaining high airflow efficiency.

Specification	Description
Product family name	WhisperValue® DC™
Air volume exhaust (CFM)	50 @ 0.1" SP, 53 @ 0.25" SP \| 80 @ 0.1" SP, 81 @ 0.25" SP \| 100 @ 0.1" SP, 100 @ 0.25" SP
Noise (sones)	<0.3 @ 50 CFM, 0.1" SP, 0.5 @ 50 CFM, 0.25" SP \| 0.4 @ 80 CFM, 0.1" SP, 0.8 @ 81 CFM, 0.25" SP \| 0.9 @100 CFM, 0.1" SP, 1.3 @ 100 CFM, 0.25" SP
Energy efficiency (CFM/Watt)	12.8 CFM/W @ 50 CFM \| 11.4 CFM/W @ 80 CFM \| 9.2 CFM/W 2 100 CFM
Motor type (AC/DC)	DC
Duct diameter	4" (102 mm) Oval
Lighted	No
Motion sensor	No
Moisture sensor/condensation	No
Multi-speed with time delay	Yes (50, 80 or 100 CFM)
Night light	No
Installation	Ceiling / wall
Radiation damper available	Yes
Housing dimensions (L x W x H)	10-5/8" x 10-1/4" x 3-3/8" (269 x 260 x 86 mm)
Grille size - Square inches (mm)	13" (330 mm)
ENERGY STAR®, ASHRAE 62.2, LEED	Yes
cUL listed for tub/shower enclosure	Yes (when used with a GFCI protected circuit)

brands	PANASONIC
