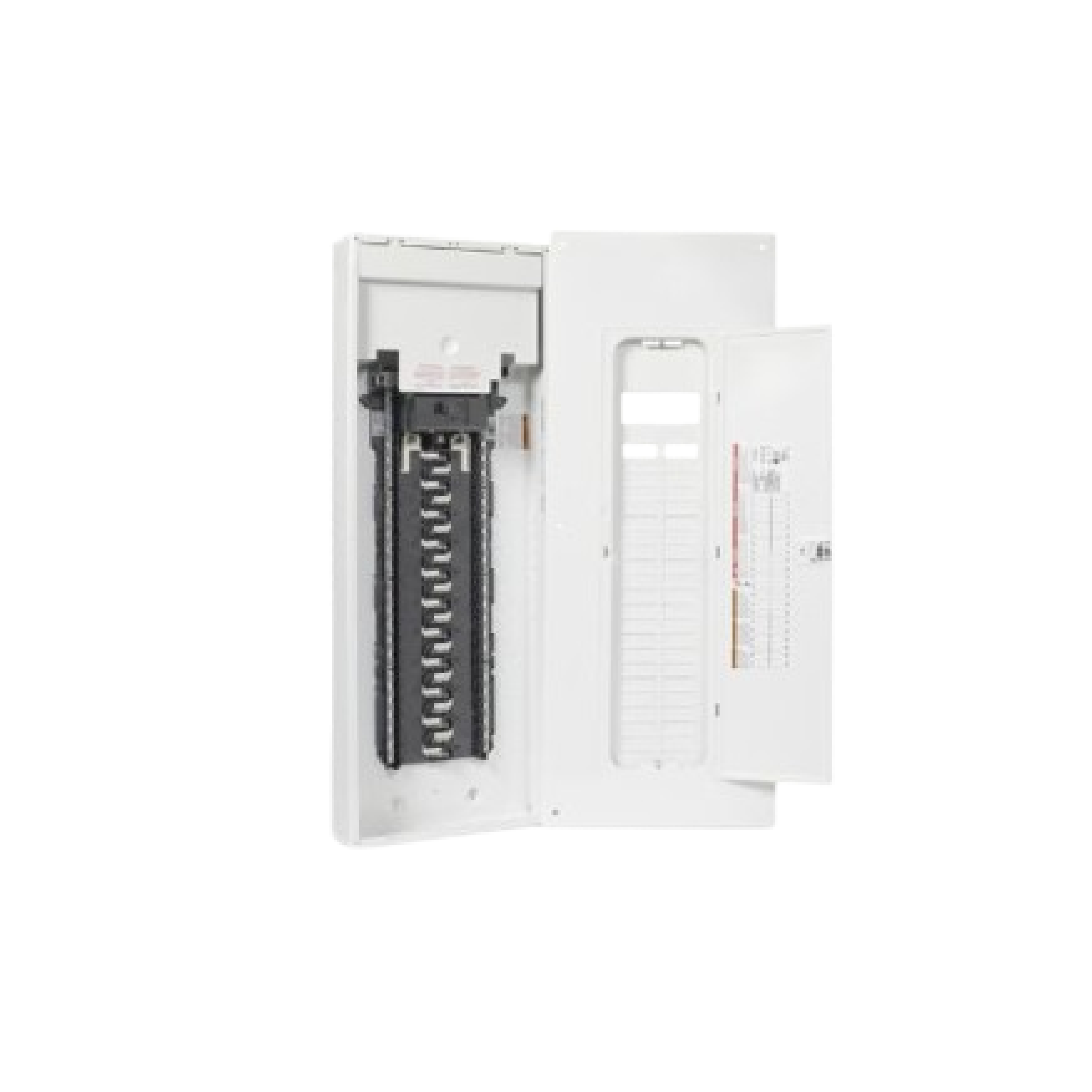

200A Main Breaker Panal 42/84 2PH Homeline Schneider (CHCHOM4284M200GC)
SKU: 1023 · Model Number: CHCHOM4284M200GC
$339.99/each · CAD
Delivery
Pick up
5118 Everest Drive
In Stock
1
Fast Delivery
Ships in 1 to 2 days
Curbside Pickup
Order online
Secure Payment
Protected checkout
Product Overview
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 2A 12/24 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 42 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 25 kcmil copper or aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. CHOM Homeline load centers are CSA certified.
- SKU
- 1023
- Model Number
- CHCHOM4284M200GC
- Range of product
- Homeline
- Product or component type
- Loadcentre
- Rated current [In]
- 200 A
- Rated operational voltage [Ue]
- 120/240 V AC
- Mounting mode
- Wall mount
- Short-circuit current
- 22 kA
- Electrical connection
- Lugs
- AWG gauge
- 4…250 kcmil Aluminum/Copper
- Loadcentre type
- Main Breaker
- Number of spaces
- 42
- Number of circuits
- 84
- Number of tandem circuit breakers
- 42
- Network number of phases
- 1 phase
- Cover type
- Combination flush/surface cover
- Device composition
- Grounding bar included (not installed)
- Wiring configuration
- 3-wire
- Busbar material
- Tin plated aluminum
- Enclosure material
- Welded sheet steel
- Cover colour
- White
- Box number
- 12
- Product certifications
- CSA
- NEMA degree of protection
- NEMA 1 (indoor)
- Ambient air temperature for operation
- 23 °F (-5 °C) – 104 °F (40 °C)
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.50 in (13.97 cm)
- Package 1 Width
- 32.30 in (82.04 cm)
- Package 1 Length
- 16.00 in (40.64 cm)
- Package 1 Weight
- 37.99 lb (17.23 kg)
- Warranty
- 18 months
- Shipping weight
- 28 lb (12.7 kg)
- Package dimensions (L × W × H)
- 39.02 × 14.25 × 4.25 in (99.1 × 36.2 × 10.8 cm)
- Availability
- In stock
- Price
- $339.99 CAD
