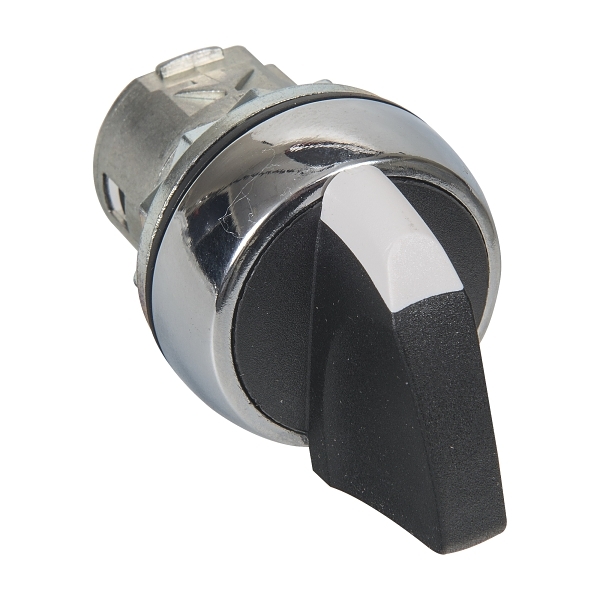

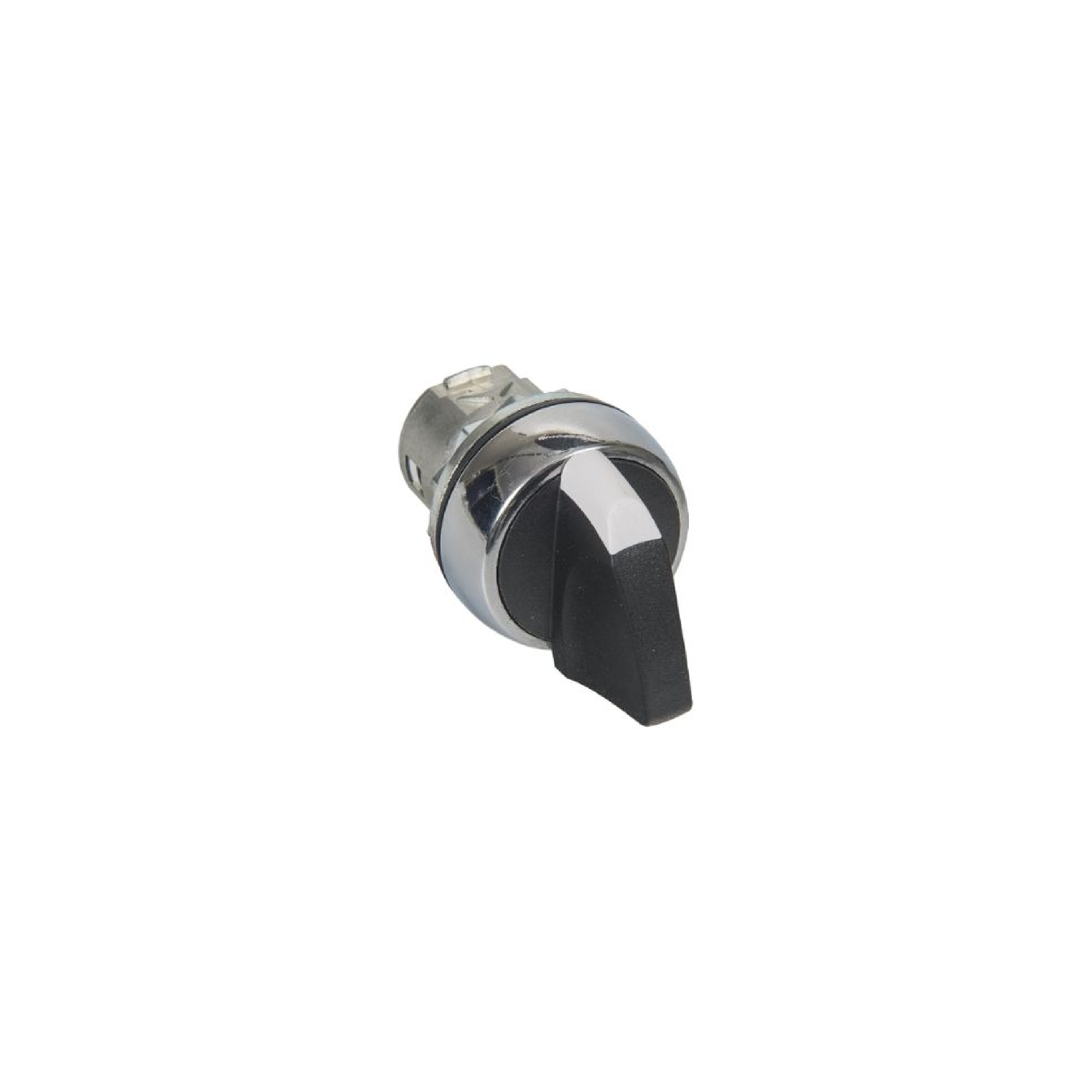

3 Position Select Metal Switch Sprecher Schuh (D7M-SM32)

Specification	Details
Component Type (ETIM Class)	Front element for selector switch
Type of Control Element	Short thumb-grip
Control Element Color	Black
Indicator Light Cap Color	White
Front Ring Material	Metal
Front Ring Color	Other
Degree of Protection (IP)	IP66 (front side)
Degree of Protection (NEMA)	Other
Number of Switch Positions	3
Switching Function	Non-latching
Spring Return	No
Maximum Vibration Acceleration	10 m/s²
Maximum Vibration Frequency	2000 Hz
Maximum Shock Acceleration	100 g
Mechanical Life	300,000 cycles
Suitable for Illumination	No
Mounting Hole Diameter	22.5 mm
Width of Opening	29.8 mm
Height of Opening	28 mm
Operating Temperature Range	−25°C to +70°C
