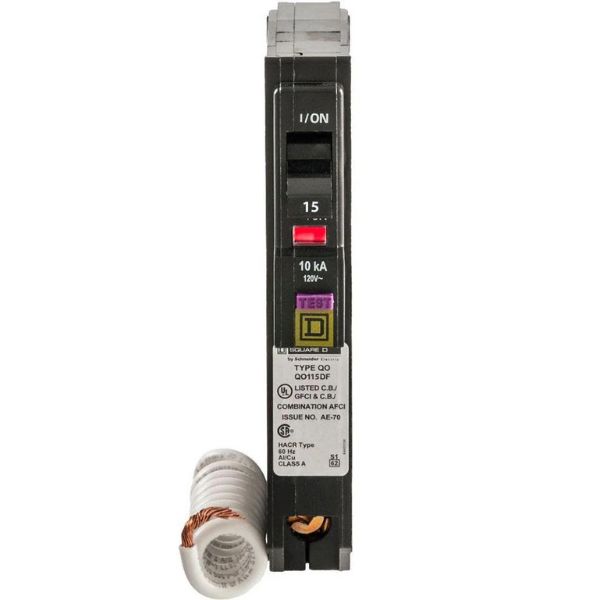

COMBINATION AFCI + GFCI 15A SINGLE POLE BREAKER QO115DF SQUARE D

Model: QO115DF
SKU: 2604
In Stock
SKU: 2604 Categories: ,

Description

The 1-pole QO circuit breaker, rated 15A at 120VAC with 10kA breaking capacity, features thermal-magnetic protection, VisiTrip indication, plug-in mounting, and a dual-function combination arc fault and ground fault protection with pigtail.

Specification Details
Catalog Number QO115DF
Product Type Dual Function Circuit Breaker (AFCI + GFCI)
Amperage Rating 15 A
Voltage Rating 120 VAC
Interrupting Rating 10 kA
Number of Poles 1
Mounting Type Plug-on
Wire Size 14–8 AWG Cu / 12–8 AWG Al
Terminal Type Pressure Plate
Trip Type Thermal-Magnetic
Length (L) 4.75 in (120.65 mm)
Width (B) 0.75 in (19.05 mm)
Height (H) 2.91 in (73.91 mm)
Weight 0.6 lb (272 g)



Additional information

Brand

SQUARE D
