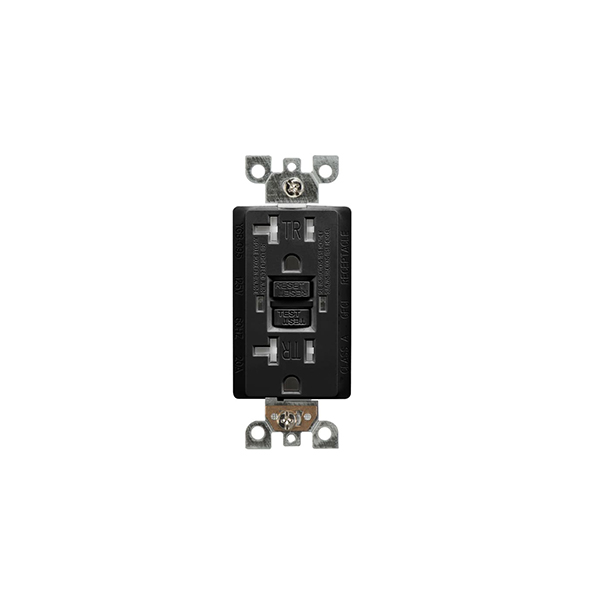

Black GFCI 20A TR Recep VT(YGB-095)

Model: YGB-095
SKU: 2257
SKU: 2257 Category:

Description

This device is designed for superior performance, durability, and safety. Copper alloy blade contacts provide excellent conductivity and efficient heat dissipation, while cover pans made of high-quality polycarbonate offer exceptional impact resistance and thermal stability. Fingerprint-resistant, zinc-plated mounting brackets ensure strong chemical corrosion resistance, and the one-piece grounding design provides reliable electrical grounding. Integrated security doors enhance safety by preventing accidental exposure, making this device ideal for both residential and commercial applications.

Specification Details
Model No. YGB-095
Type Tamper-Resistant
Rated Current 20 A
Rated Voltage 125 V / 60 Hz
Temperature −35°C to 66°C
Insulation Resistance >50 MΩ (DC 500 V)
Electric Strength
Pressure resistance 1500 V, 50 Hz, 1 min
Surge Current
6000 V / 3000 A, 6000 V / 10 kA
Tripping Threshold & Time 5 mA & 25 ms
Housing Material
Flame retardant grades UL94-V2
Standards
UL498, UL943, CSA-C22.2 No.42
Unloaded Plug ≥5000 sec Loop detection
