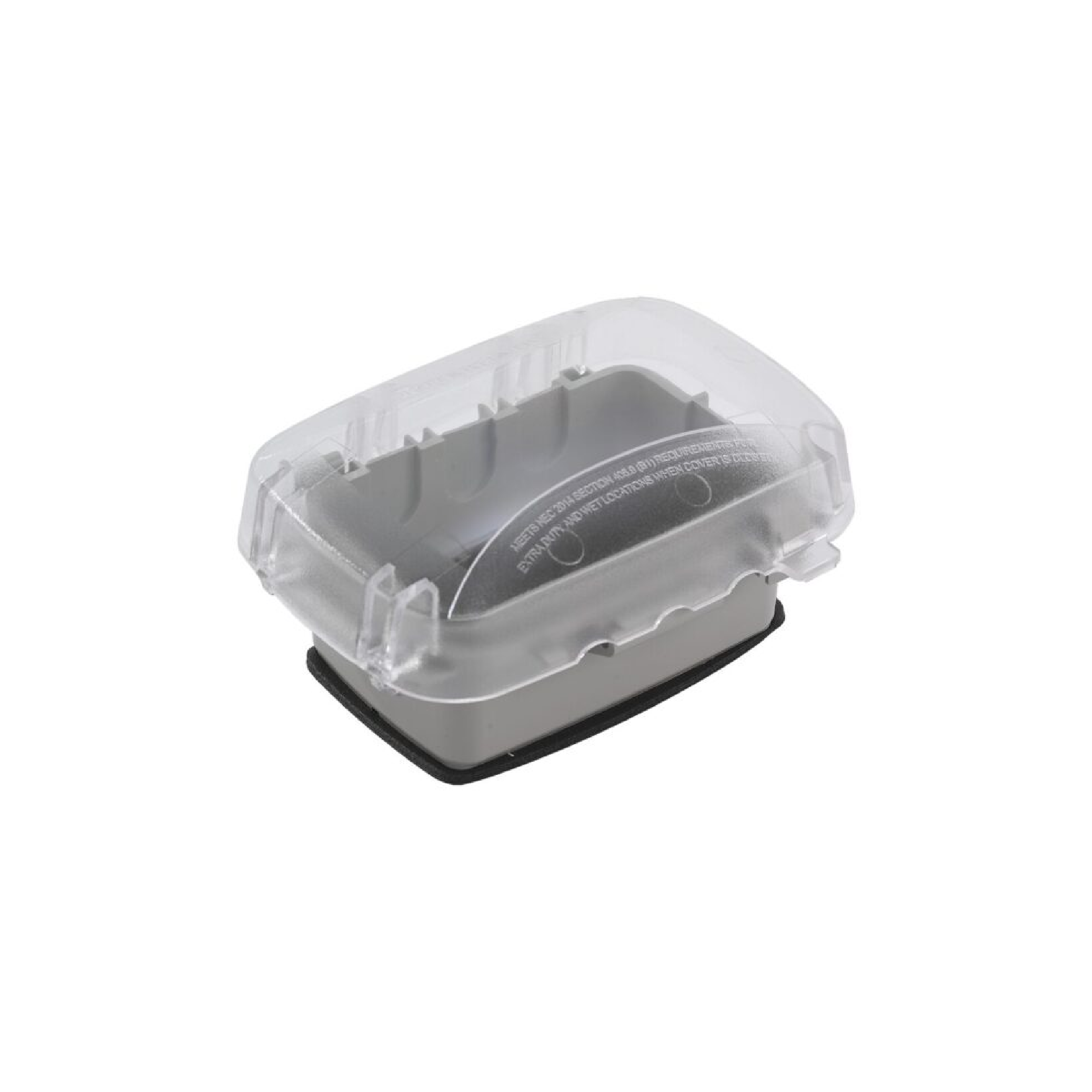

Bubble Box 1G H.D. Intermatic (WP5100C)

Model: WP5100C
SKU: 3021
In Stock

Description

Crafted from durable plastic for long-lasting, weather-resistant performance, this extra-duty rated cover provides reliable protection for outdoor electrical outlets. It offers easy installation with a complete kit—including a gasket, mounting screws, base, cover assembly, and inserts—ensuring versatility, convenience, and robust weatherproof protection for in-use outlets against rain, snow, and other harsh conditions.

Specification Details
Color Clear, Gray
Hinge Direction
Vertical/Horizontal
Accepted Cord Size Max
1x12 AWG, 2x14 AWG
CA Prop65 Message
This product is in compliance with Prop65
Country of Origin Mexico
Cover Gasket 3mm
Enclosure Type
Outdoor type 3R plastic
Has Reinforced Hinge Pin Yes
Insert Types Included WP17
Material
UV Stabilized Polycarbonate
RoHS Certification N
Warranty Period 1-Year limited
Weatherproof Cover Material
UV Stabilized Plastic
Auto Start/Stop FALSE
Check Valve FALSE
DOE Compliant FALSE
Freeze Protection FALSE
Leaf Screen FALSE
Lockable Hasp Maximum Diameter (in) 1/4
Lockable Hasp Maximum Diameter (mm) 6
Product Depth (in) 2.75
Product Depth (mm) 70
Product Height (in) 6.33
Product Height (mm) 160.3
Product Width (in) 4.66
Product Width (mm) 119.1
Self Priming FALSE
Submersible FALSE
UL Certification CULUS
Unit Carton Height (in) 6.5
Unit Carton Length (in) 4.75
Unit Carton Weight (lb) 0.5
Unit Carton Width (in) 2.75
Units Per Pallet 900
UV Resilient Outdoor Enclosure FALSE

Additional information

Brand

INTERMATIC
