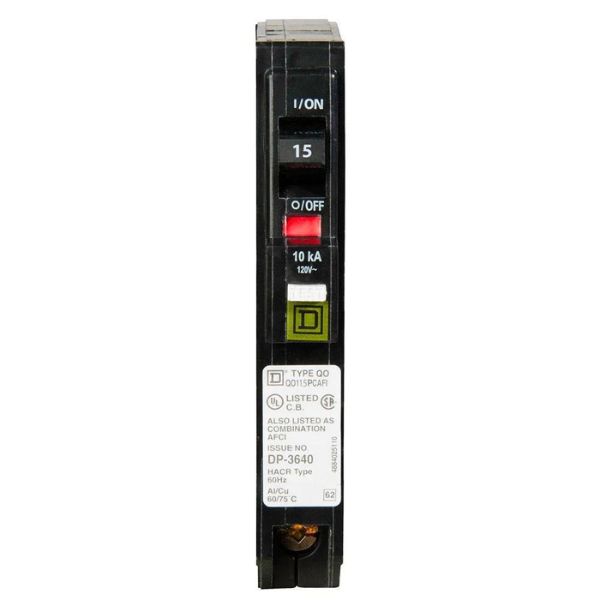

Combination AFCI 15A Single Pole Breaker Square D (No Pigtail) (QO115PCAFI)

Description

The 1-pole QO circuit breaker, rated 15A at 120VAC with 10kA breaking capacity, features thermal-magnetic protection, VisiTrip indication, plug-in mounting, a combination arc fault with plug-on neutral, and supports optional accessories like shunt trips and auxiliary switches.

Specification	Details
Catalog Number	QO115PCAFI
Product Type	Combination AFCI Breaker
Amperage Ratingx	15 A
Voltage Rating	120 VAC
Interrupting Rating	10 kA
Number of Poles	1
Mounting Type	Plug-on
Wire Size	14–8 AWG Cu / 12–8 AWG Al
Terminal Type	Pressure Plate
Trip Type	Thermal-Magnetic
Length (L)	4.75 in (120.65 mm)
Width (B)	0.75 in (19.05 mm)
Height (H)	2.91 in (73.91 mm)
Weight	0.6 lb (272 g)
