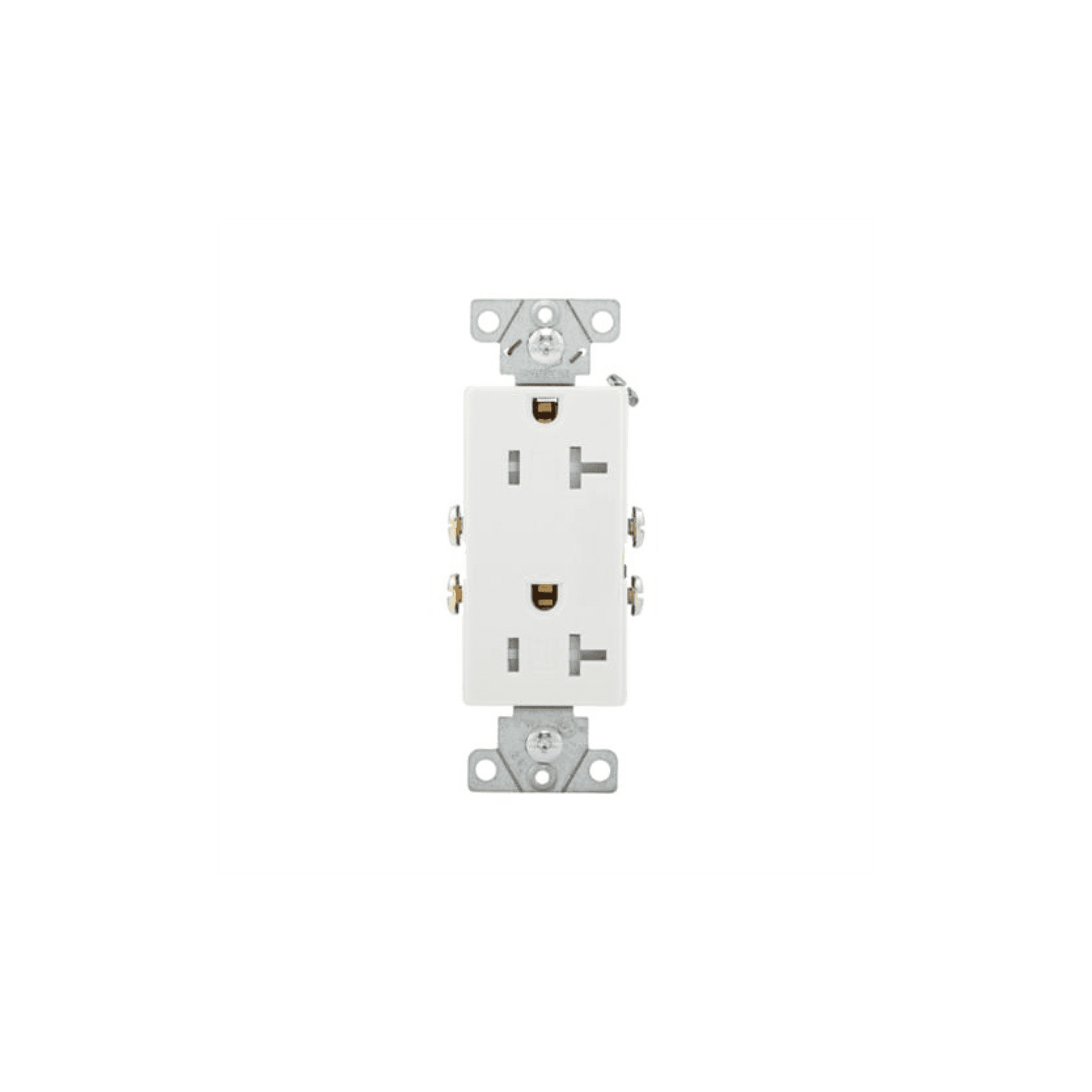

Name: Decora White 20A TR Recep 125V Eaton (TR1307-W)
SKU: 1553
Availability: InStock

Decora White 20A TR Recep 125V Eaton (TR1307-W)

Model: TR1307-W

SKU: 1553

$4.99

Add to wishlist

Other people want this. 1 people have this in their carts right now.

SKU: 1553 Category: Recepatcles

Description

Eaton residential grade decorator duplex receptacle, #14-10 AWG, 20A, Commercial, Residential, Flush, 125V, Side wire, White, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Duplex, Screw, Thermoplastic, ED Box

Specification	Details
Product Name	Eaton Residential Grade Decorator Duplex Receptacle
Catalog Number	TR1307W-BOX
Product Length / Depth	1.31 in
Product Height	4.19 in
Product Width	0.74 in
Product Weight	0.154 lb
Certifications	cULus Listed, NOM
Device Type	Receptacle
Type	Decorator Duplex Receptacle
Receptacle Type	Duplex
Amperage Rating	20A
Voltage Rating	125V
NEMA Configuration	5-20R
Design Type	Straight Blade
Number of Poles	Two-Pole
Number of Wires	3
Wiring Method	Side Wire
Connection Type	Screw
Allowable Wire Size	#14–10 AWG
Torque Rating	14 lbf-in
Contact Material	Brass
Features	Tamper Resistant
Application	Commercial / Residential
Device Grade	Standard Grade
Mounting Method	Flush
Style Type	Decorator
Material	Thermoplastic
Face / Body Material	Impact-Resistant Thermoplastic Face, PVC Body
Color	White
Packaging Type	ED Box
