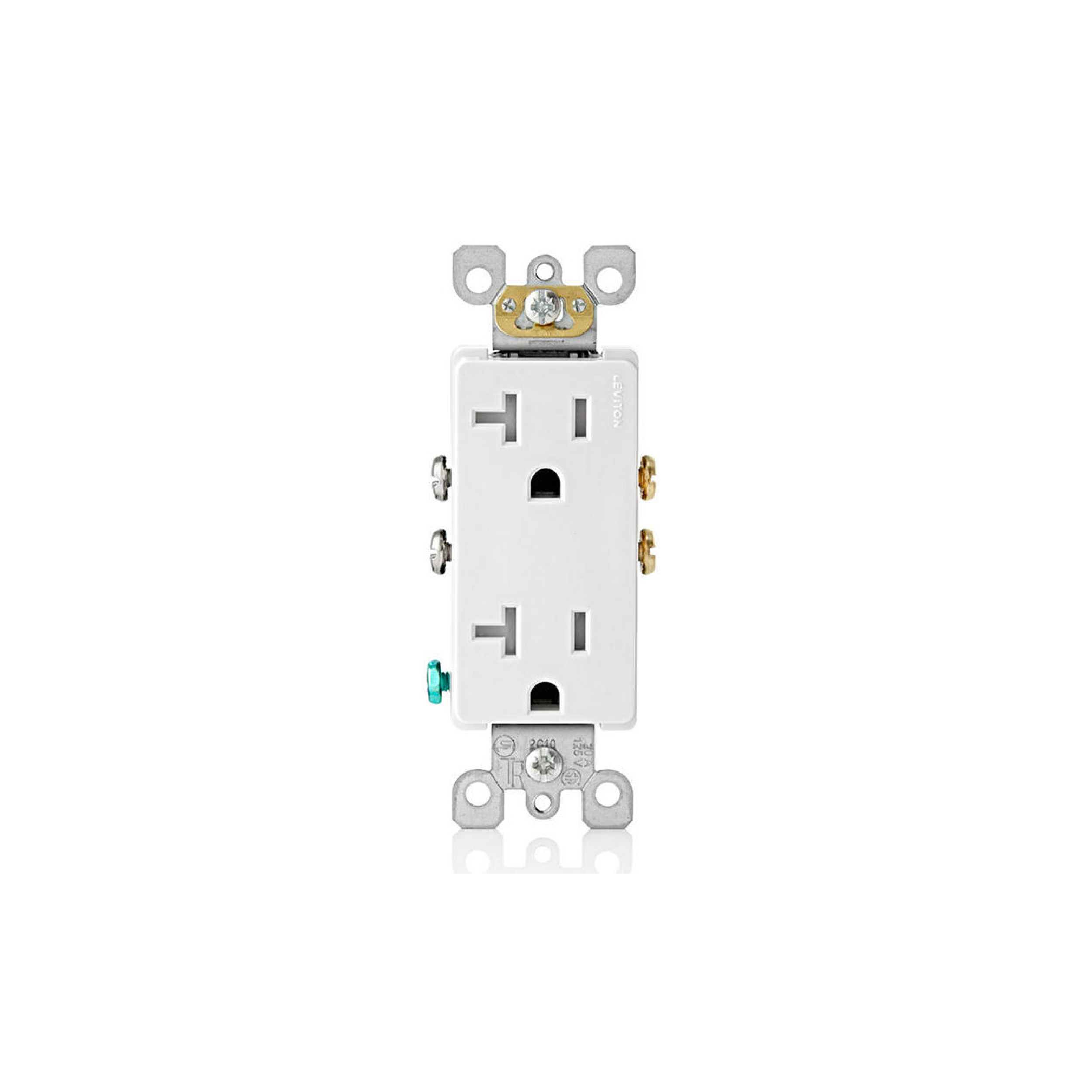

Decora White TR Recep 20A 125V Leviton (T5825-W)

Model: T5825-W
SKU: 1554
SKU: 1554 Category:

Description

This 20A, 125V NEMA 5-20R tamper-resistant duplex receptacle offers reliable and safe electrical connections for residential and commercial use. Featuring 2-pole, 3-wire straight-blade configuration with self-grounding and side-wired terminals, it ensures easy installation and compliance with the latest NEC requirements. Constructed from impact-resistant thermoplastic nylon, the receptacle is durable and built to withstand daily use, while its tamper-resistant design provides protection against electrical shocks. The TR symbol on the strap confirms compliance with current safety standards, making it a convenient and dependable choice for modern electrical installations.

Specification Details
Amperage 20 A
Voltage / Ratings
125 V, 20A-125V
Color White
Type
Duplex Receptacle
Product Type Decora
Feature
Tamper-Resistant
NEMA 5-20R
Termination Side
Terminal Accommodation
Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
Torque Range 14–18 in.-lbs
Warranty 2-Year Limited
Standards & Certifications
CSA C22.2 No. 42: File 152105; Class 6233-01, NOM Certified, UL 498: File E13399
