Name: GFCI 20A Blank Face Eaton (SGFD20W)
SKU: 1242
Availability: InStock

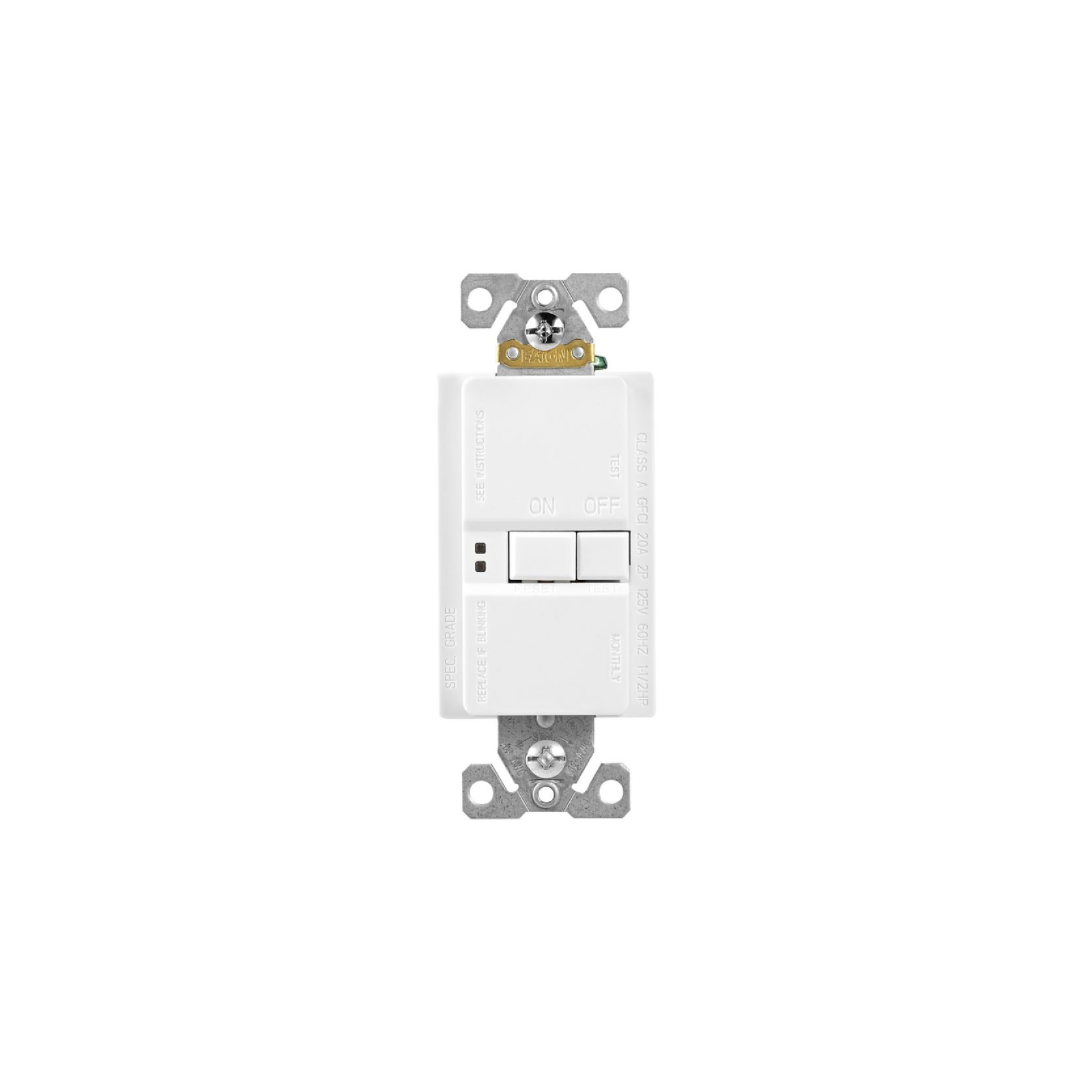

GFCI 20A Blank Face Eaton (SGFD20W)

Model: SGFD20WEaton Blankface GFCI,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,White,Brass,Blankface,Thermoplastic,Two-pole,Three-wire,Two-pole, three-wire, grounding

SKU: 1242

$19.99

Add to wishlist

SKU: 1242 Category: Recepatcles

Description

Eaton Blankface GFCI,Self-test,#14 – 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,White,Brass,Blankface,Thermoplastic,Two-pole,Three-wire,Two-pole, three-wire, grounding

Specification	Details
Product Name	Eaton Blankface GFCI
Catalog Number	SGFD20W
Product Length / Depth	2.041 in
Product Height	4.751 in
Product Width	2.97 in
Product Weight	0.01 lb
Certifications	cULus Listed, NOM
Device Type	Receptacle (Blankface)
Type	Self-Test
Circuit Interrupter Type	GFCI
Receptacle Type	Two-Pole, Three-Wire, Grounding
Amperage Rating	20A
Voltage Rating	125V
NEMA Configuration	5-20R
Number of Poles	Two-Pole
Number of Wires	Three-Wire
Wiring Method	Back and Side Wire
Allowable Wire Size	#14–10 AWG
Torque Rating	16 lbf-in
Contact Material	Brass
Application	Residential / Commercial
Mounting Method	Flush
Face / Body Material	PVC, Thermoplastic
Color	White
