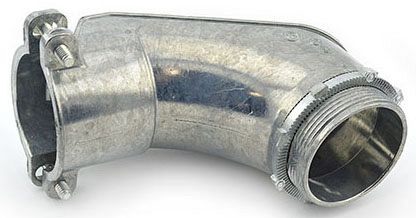

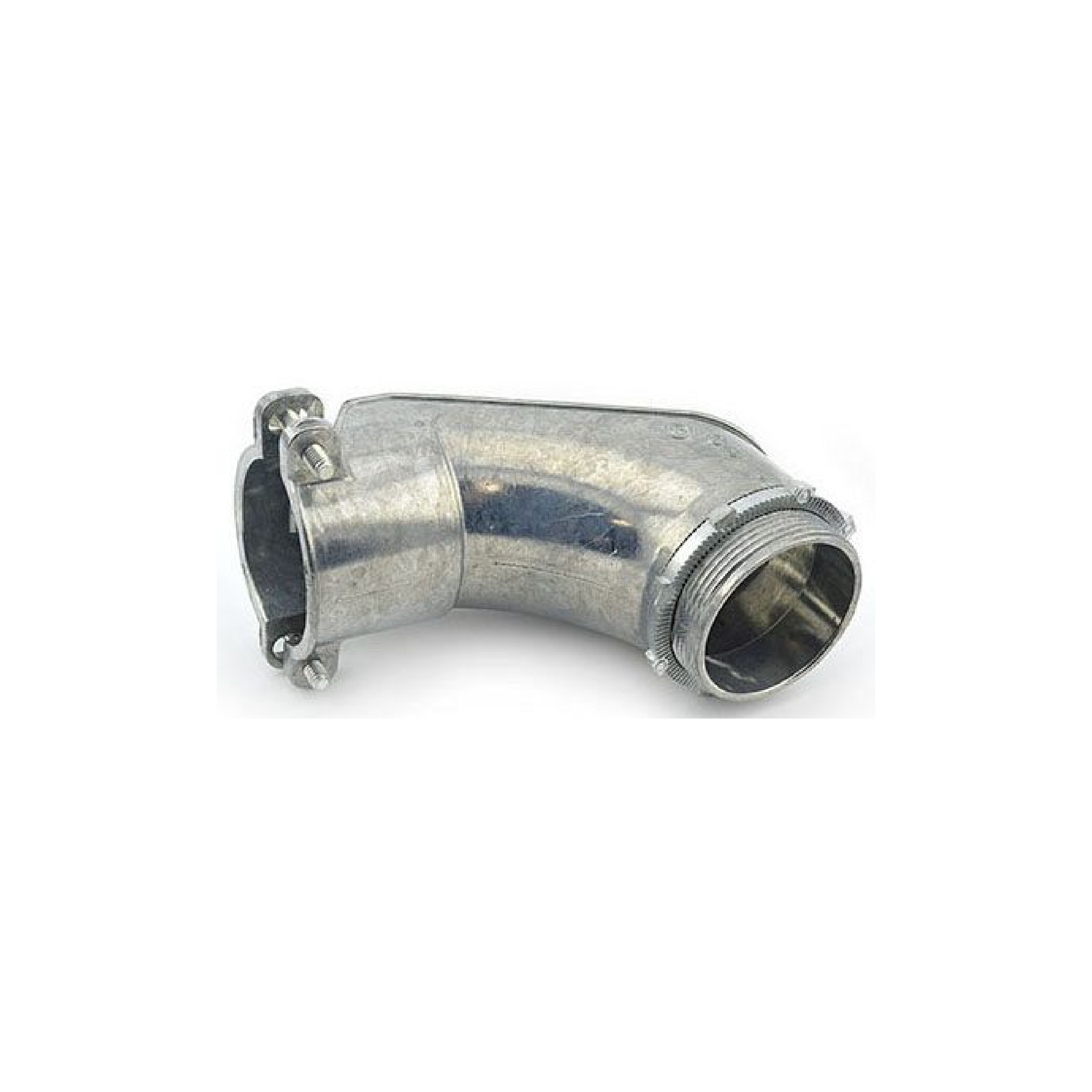

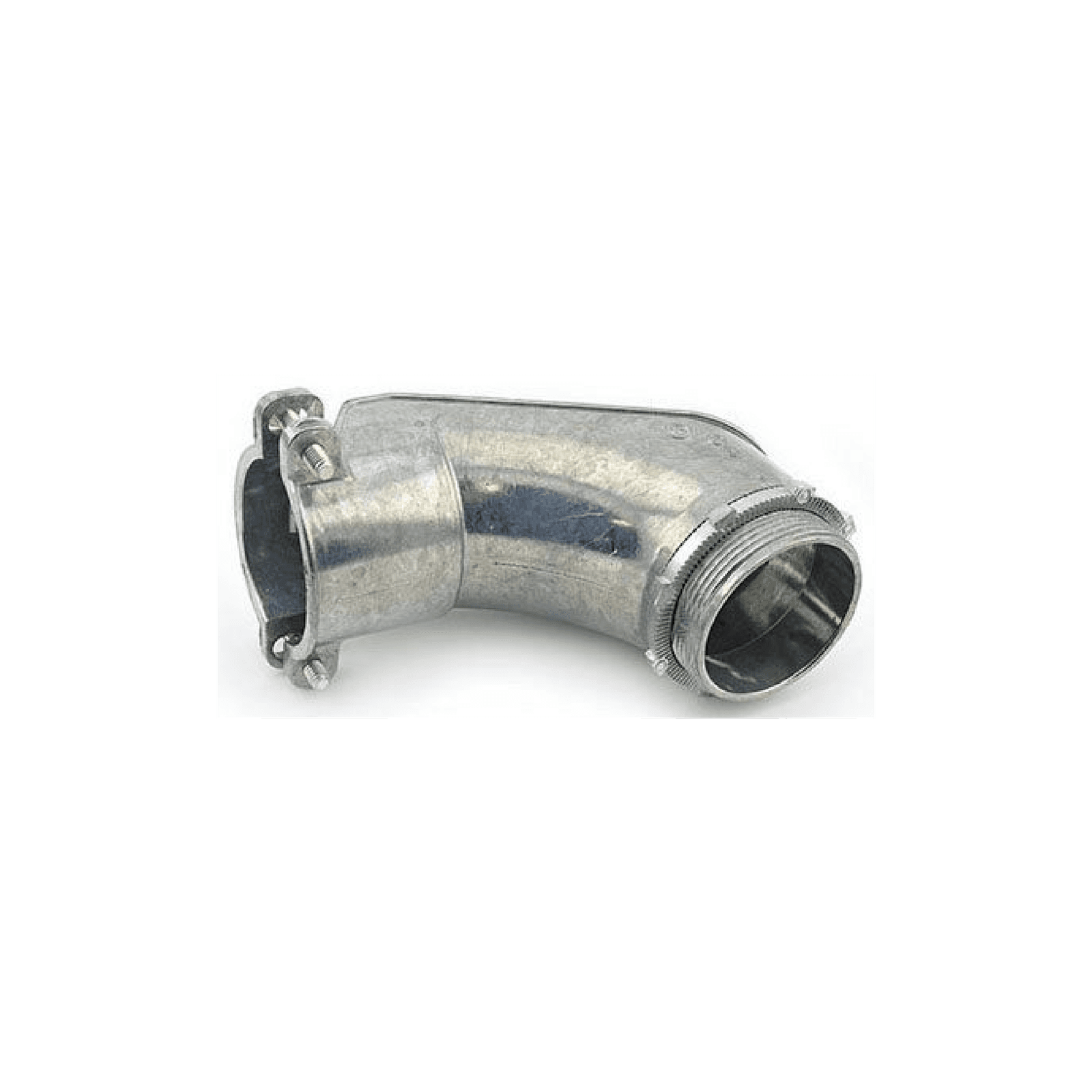

L22 2" 90 Deg Metal Connector (810-DC2)

L22 2″ 90 Deg Metal Connector (810-DC2)

Model: 810-DC2
SKU: 2928
Delivery
Delivery options for Enter postal code
Store Pick-Up
9 at Mississauga Britannia
As soon as Today FREE
SKU: 2928 Categories: ,

Description

Bridgeport 810-DC2 2″ 90-degree Zinc Diecast Connector for Flexible Metal Conduit90 Degree Type; Ball Burnished Mirror Smooth Die-Cast Zinc Material; (2) Screw Installation; UL 514B, CSA Approval; 5 Standard Package; 2 Inch Trade Size; 2 Inch Knockout Size; Flexible Metal Conduit; Single Cable Opening; Rohs/Reach Compliant
Specification Details
UPC 781747158109
Standard Package 5
Approval UL 514B, CSA
Additional Information
RoHS/REACH Compliant; Throat Size: 2.04 in Diameter; Federal Spec A-A-50552; NEMA FB-1; LEED
Catalog Number 810-DC2
Type 90 Degree
Trade Size 2 Inch
Knockout Size 2 Inch
Cable Opening Single
Cable/Conduit Type
Flexible Metal Conduit
Installation (2) Screw
Material
Ball Burnished Mirror Smooth Die-Cast Zinc
Catalog Description
CONNECTOR, 90°, ZINC DIE CAST, FLEX SIZE 2"
Category
Liquid Tight Flex Conduit Fittings
Full Technical Description
90° Type; Die-Cast Zinc; (2) Screws; UL 514B, CSA; 5-Pack; 2" Trade & Knockout; FMC; Single Opening; RoHS/REACH; 2.04" Throat; Federal Spec A-A-50552; NEMA FB-1; LEED
Made in USA Yes
Manufacturer
Bridgeport Fittings, Inc.
Brand
Bridgeport Fittings, Inc.
Sub-Category
Armored Cable / Flex Conduit Connector
UNSPSC 39121419
Unique Product Key 234684
Comm Code Enhanced 24200

Additional information

Brand

NSI
