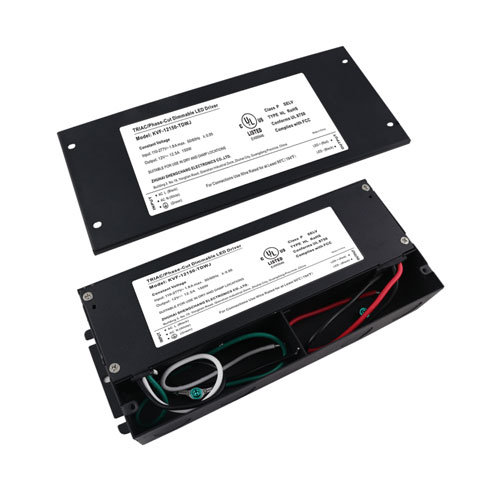

LED Driver Dimmable 12V 150W 100-277VAC (OT-12150-TDWJ)

Name: LED Driver Dimmable 12V 150W 100-277VAC (OT-12150-TDWJ)
SKU: 2518
Price: 119.99 CAD
Availability: InStock

SKU: 2518 · Model Number: OT-12150-TDWJ

$119.99/each · CAD

Delivery

Pick up

5118 Everest Drive

In Stock

SKU: 2518
Model Number: OT-12150-TDWJ
Input Voltage: 110–277V AC
Output Voltage: 12V DC
Maximum Wattage: 150W
Output Current (Amps): 12.5A
Dimmable: Yes
Frequency Range: 47–63Hz
Power Factor: 0.98 at 120V AC, 0.95 at 277V AC
Efficiency (Typical): 85%
AC Current (Max): 1.8A at 110V AC
Short Circuit Protection: Shuts down output voltage; repower to recover after fault condition removed
Overloading Protection: 120%
Operating Temperature: -40ºC to +60ºC
Operating Humidity: 20–90% RH, non-condensing
Safety Standards: UL 8750
Withstand Voltage: I/P-O/P: 1880V AC
Isolation Resistance: I/P-O/P: 100MΩ / 500V DC / +25ºC / 70% RH
Warranty: 5 years
Case Quantity: 10
Shipping weight: 2.2 lb (1 kg)
Package dimensions (L × W × H): 8.5 × 2.99 × 1.5 in (21.6 × 7.6 × 3.8 cm)
Category: LED Driver Dimmable,LED Outdoor Transformer,Lighting
Availability: In stock
Price: $119.99 CAD
