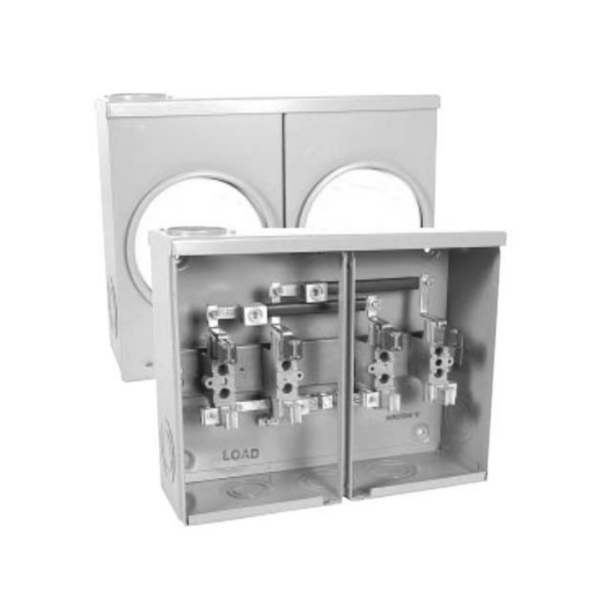

Meter Base 2 Gang 200A 600V 4 Jaws 100A Per Position Hydel (SD220PW)

Meter Base 2 Gang 200A 600V 4 Jaws 100A Per Position Hydel (SD220PW)

Model: SD220PW
SKU: 2018
In Stock
SKU: 2018 Categories: ,

Description

Hydel SD220PW, Factory Bussed 200 Amp Mains, 4 Jaw Meter Socket, 2 Gang Position, 100 Amp 600 Volts per Position, Approved for Overhead or Underground Use
Specification Description
Stock Code: SD220PW
Brand: Hydel
Family: 100 Amp - Multi Position
Voltage (V): 600V
Part No: Factory Bussed – 200 Amp Mains, 100 Amp – 600 Volts per Position
Amp Rating: 200A
Width (in): 15"
Height (in): 12"
Depth (in): 5"
Phase: Single Phase
Enclosure Rating: NEMA 3R (Outdoor-rated, rainproof)
Sold Separately:
- 5th Jaw at 9 O'clock: SXK503 - SD220 Conversion Kit - ST911 Meter Socket (Overhead use)
Mounting: Approved for Overhead or Underground Use, Horizontal
Operates: - Line: No. 6-250 MCM CU/AL - Load: No. 6-1/0 AWG CU/AL
Notes:
- For overhead, order "SXC" hub separately - Add suffix "RH" for right-hand entry
Cross Reference: ABB Thomas & Betts Microelectric BE2-V
UL Listed: CSA

Additional information

Brand

HYDEL

Reviews

There are no reviews yet.

Be the first to review “Meter Base 2 Gang 200A 600V 4 Jaws 100A Per Position Hydel (SD220PW)”

Your email address will not be published. Required fields are marked *

Related products

Meter Base 2 Gang 400A 600V 4 Jaws 200A Per Multi Position Hydel (MSC42TW)
Add to wishlist

Meter Base 2 Gang 400A 600V 4 Jaws 200A Per Multi Position Hydel (MSC42TW)

Read more
Clevis 100A Light Duty Dead End Flat Mount Hydel (222R)
Add to wishlist

Clevis 100A Light Duty Dead End Flat Mount Hydel (222R)

Read more
Meter Base1 Gang 200A 600V Combination Underground/Overhead W/Lug Hydel (E400RO)
Add to wishlist

Meter Base1 Gang 200A 600V Combination Underground/Overhead W/Lug Hydel (E400RO)

Read more
Meter Base 3 Gang 200A 600V 4 Jaws 100A Per Position Hydel (SD320PW)
Add to wishlist

Meter Base 3 Gang 200A 600V 4 Jaws 100A Per Position Hydel (SD320PW)

Read more
Meter Base 4 Gang 400A 600V 4 Jaws 200A Per Multi Positon Hydel (HC44R)
Add to wishlist

Meter Base 4 Gang 400A 600V 4 Jaws 200A Per Multi Positon Hydel (HC44R)

Read more

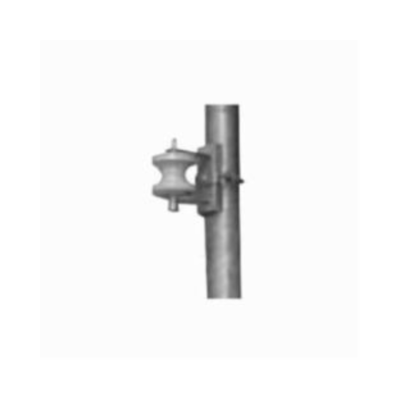

Clevis 200A Heavy Duty Flat Mount Triplex Cable Rack Hydel (117)
