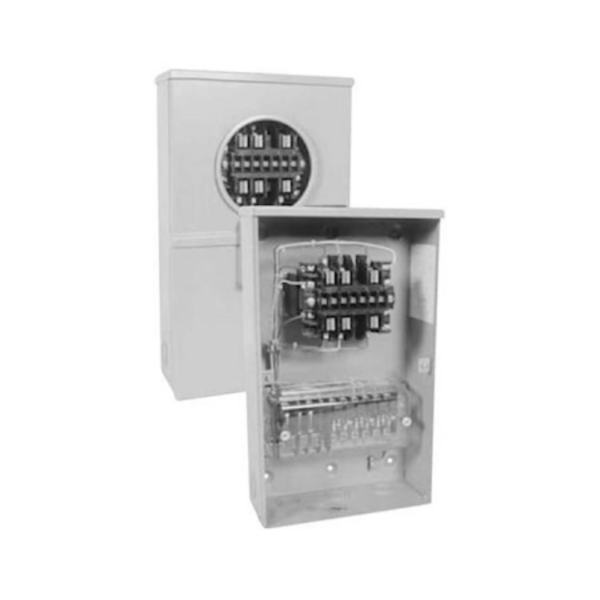

METER BASE 1 GANG 400A 120/240V 5 JAWS + TEST SWITCH CT4-TSHO HYDEL (Hydro One Standard)

Description

METER BASE + TEST SWITCH 1 GANG 400A 1 PH 5 JAW CT4-TSHO HYDELMETER BASE + TEST SWITCH 1 GANG 400A 1 PH 5 JAW CT4-TSHO HYDEL

Specification	Details
Stock Code	CT4-TSHO
Brand	Hydel
Family	CT4 Series – 400 Amp Meter Socket
Voltage (V)	120/240 V
Amp Rating	400A
Width (in)	20
Height (in)	36
Depth (in.)	8
Phase	Single Phase
Mounting	Overhead / Underground
Operates	Often used in Hydro One Utility Area
Case Quantity	CSA Listed
Notes	1. Tunnel lug kit supplied for overhead service (LK250, LK500, LK750) upon request 2. Line side – Double 1/2" studs to accommodate compression lugs for underground service (1 x 500 MCM or 2 x 250 MCM) 3. Load side – One #4 - 600 MCM or two 1/0 - 250 MCM tunnel type connectors 4. Neutral – 1/2" studs to accept two 500 MCM compression type lugs; one #4 - 600 MCM or two 1/0 - 250 MCM
Cross Reference	Thomas & Betts / Micro Electric: JS4B-TLHO

Brand	HYDEL
