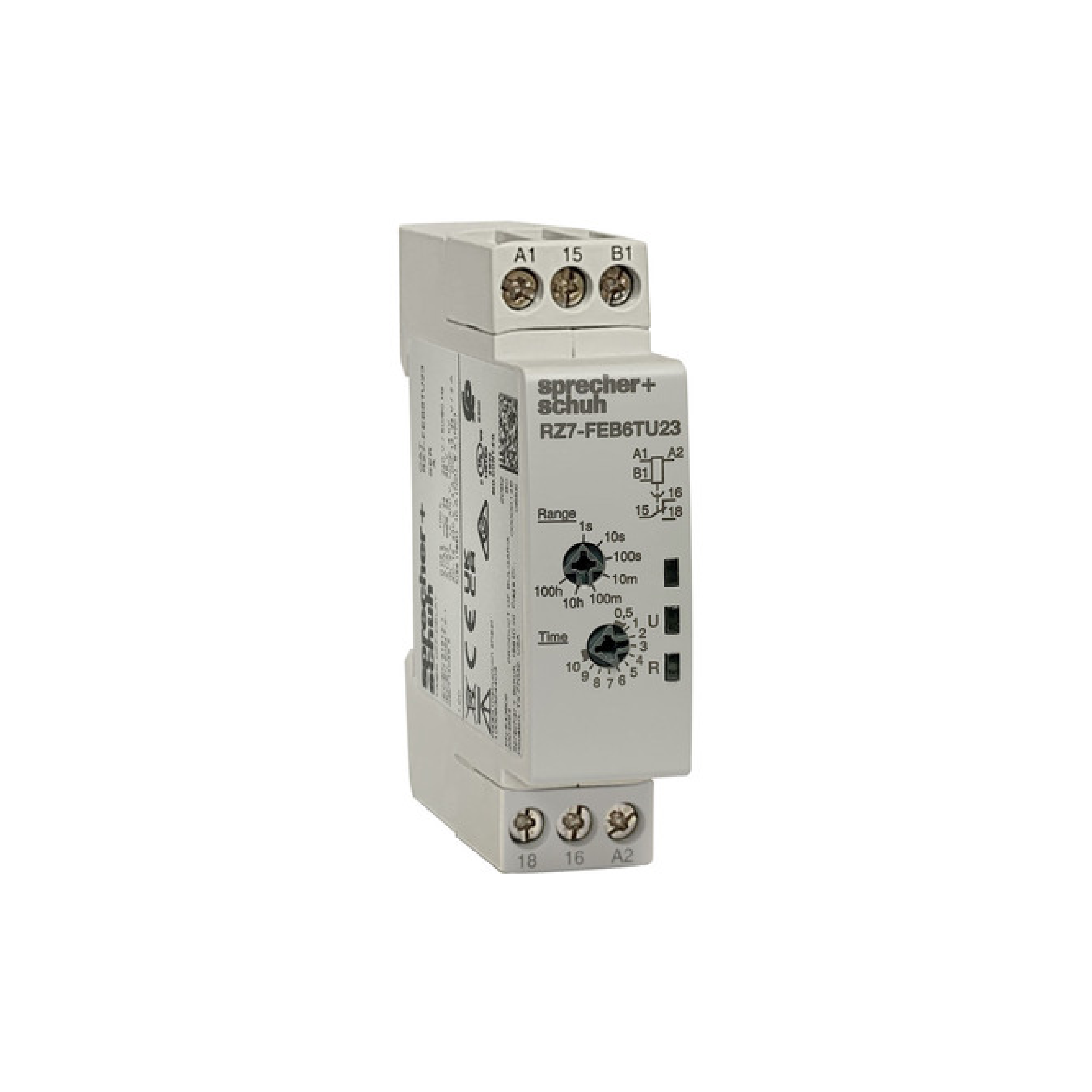

Off Delay Time Relay G Control Sprecher Schuh (RZ7-FEB6TU23)

Specification	Details
Voltage type for actuating	AC/DC
Rated control supply voltage Us (DC)	24–48 V
Rated control supply voltage Us (AC 60 Hz)	24–240 V
Rated control supply voltage Us (AC 50 Hz)	24–240 V
Number of outputs, delayed, change-over contact	1
Rated operation current Ie at DC-13, 24 V	1 A
Type of electric connection	Screw connection
Function delay-on energization	No
Function delay-on de-energization	Yes
Function floating contact on energization	No
Function floating contact on de-energization	No
Function star-delta	No
Function pulse shaping	No
Function flashing, starting with pause, fixed time	No
Function flashing, starting with pulse, fixed time	No
Clock function, starting with pause, variable	Yes
Clock function, starting with pulse, variable	Yes
Time range	0.05–360,000 s
Time setting accuracy	5 %
Power consumption	0.5 VA
Real power	0.5 W
Electrical lifespan (control contacts)	400,000 cycles

Additional information

Brand	SPRECHER SCHUH
