Teck Connector 1.50″ AL 1.65″-2.00″ Wet Type (TMC2-150200A)
SKU: 2241 · Model Number: TMC2-150200A
$59.99/each · CAD
Delivery
Pick up
5118 Everest Drive
In Stock
1
Fast Delivery
Ships in 1 to 2 days
Curbside Pickup
Order online
Secure Payment
Protected checkout
Product Overview

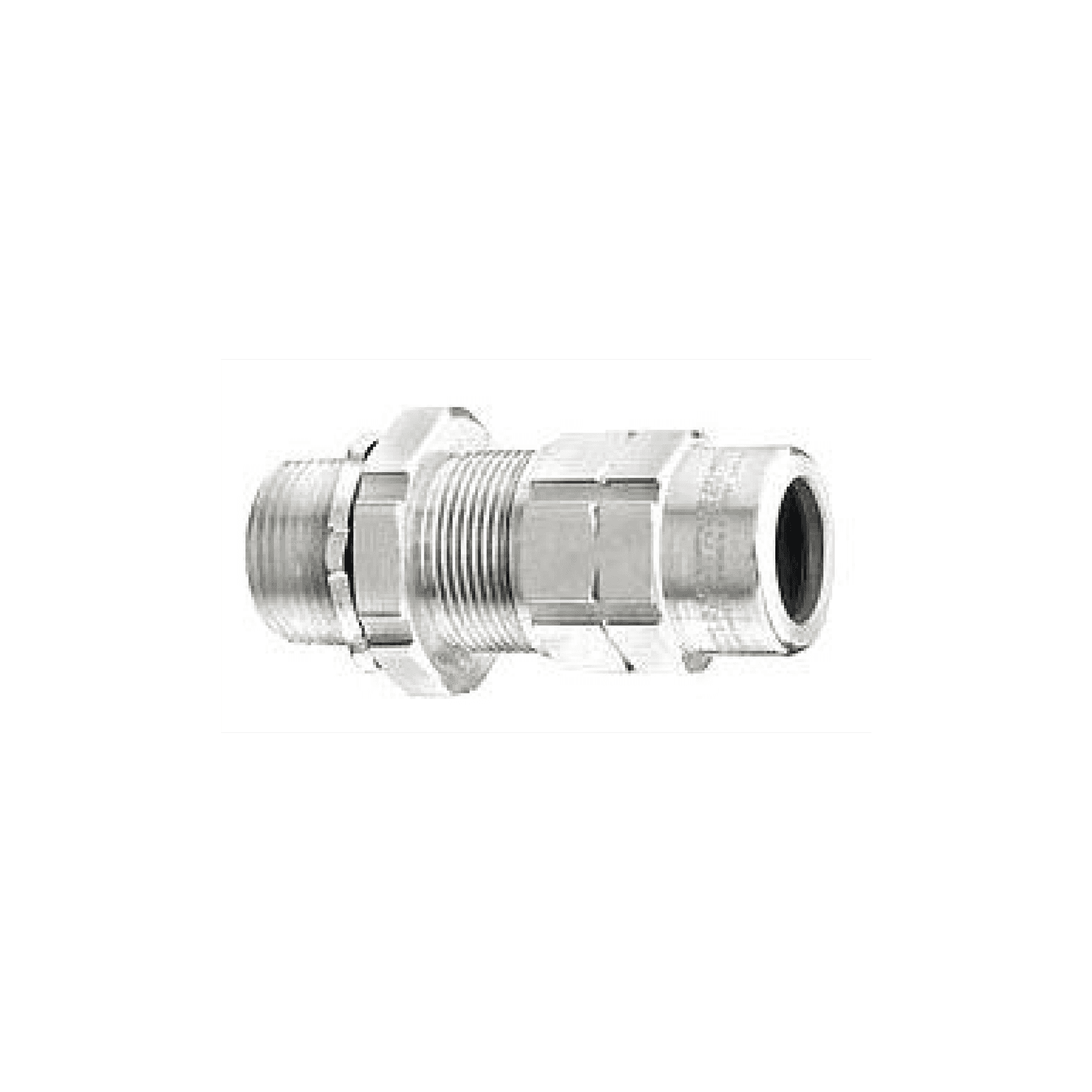

Appleton TMC2-150200A Mc Cable Gland2-Piece, Threaded, Straight Type; Copper-Free Aluminum (Body/Sleeve/Nut), Stainless Steel (Grounding Spring), Halogen-Free Lsf-TPE (Bushing), Nylon (End Stop Washer), Viton (O-ring) Material; 3.63 Inch; 1-1/2 Inch Hub Size
- Brand
- Arlington
- SKU
- 2241
- Model Number
- TMC2-150200A
- Catalog Number
- TMC2-150200A
- Model
- TMC2
- UPC
- 78138130082
- UPC (12 Digit)
- 781381300827
- Length
- 3.66 Inch
- Diameter
- 2.97 Inch
- Hub Size
- 1-1/2 Inch
- Constructional Feature
- Watertight
- Material
- Copper-Free Aluminum (Body/Sleeve/Nut), Stainless Steel (Grounding Spring), Halogen-Free LSF-TPE (Bushing), Nylon (End Stop Washer), Viton (O-Ring)
- Application
- Hazardous Location
- Approval
- UL 514B/2225, CSA C22.2
- Additional Information
- Continuous Operating Temperature -60 to 110°C
- Type
- Straight, 2-Piece
- Throat Type
- O-Ring, Bushing
- Cable Type
- Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor
- Cable Size
- 1.65 to 2 Inch
- Catalog Description
- TMC2 Series Cable Gland Connector, Size: 1-1/2 in, Material: Copper-Free Aluminum, Enclosure: IP66, NEMA Rating: NEMA 4X, Temperature Rating: -60 to 110°C, Connection: NPT, Dimensions: 2-3/4 in Across Flat × 2.97 in Across Corner × 3.66 in
- Full Technical Description
- 2-Piece, Threaded, Straight Type; Copper-Free Aluminum (Body/Sleeve/Nut), Stainless Steel (Grounding Spring), Halogen-Free LSF-TPE (Bushing), Nylon (End Stop Washer), Viton (O-ring) Material; 3.63 Inch; 1-1/2 Inch Hub Size; Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armored, Continuously Welded Armored Cable Type; 1.65–2 Inch Cable Size; UL 514B/2225, CSA (Canada and US), CSA C22.2 Approval; Hazardous Location Application; 2.97 Inch Diameter; Explosionproof, Water Tight; Bushing, Gland Nut, O-ring Throat Type; Cable Armor Diameter 1.57–1.7 Inch (Stop in), 1.7–1.88 Inch (Stop Out); Enclosure Rating Class I Div 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, Class I Zone 1 and 2 IIC, NEMA 4X, IP66; Operating Temperature Rating -76 to 230°F; Applicable Standard NEC/CEC; TMC2 Model
- Manufacturer
- Appleton Electric
- Manufacturer Brand
- Appleton Electric
- Product Description
- Appleton TMC2-150200A MC Cable Gland
- Sub-Category
- Explosionproof Armored/Metal Clad Cable Connector
- UNSPSC
- 39121431
- Unique Product Key
- 5747061
- Comm Code Enhanced
- 24200
- Shipping weight
- 1.25 lb (0.57 kg)
- Package dimensions (L × W × H)
- 3.74 × 2.83 × 2.83 in (9.5 × 7.2 × 7.2 cm)
- Category
- Cable Management,Connectors
- Availability
- In stock
- Price
- $59.99 CAD
New
No reviews yet
Loading reviews…
Write a review
Description
Product Overview
Appleton TMC2-150200A Mc Cable Gland2-Piece, Threaded, Straight Type; Copper-Free Aluminum (Body/Sleeve/Nut), Stainless Steel (Grounding Spring), Halogen-Free Lsf-TPE (Bushing), Nylon (End Stop Washer), Viton (O-ring) Material; 3.63 Inch; 1-1/2 Inch Hub Size
Specifications
- Brand
- Arlington
- SKU
- 2241
- Model Number
- TMC2-150200A
- Catalog Number
- TMC2-150200A
- Model
- TMC2
- UPC
- 78138130082
- UPC (12 Digit)
- 781381300827
- Length
- 3.66 Inch
- Diameter
- 2.97 Inch
- Hub Size
- 1-1/2 Inch
- Constructional Feature
- Watertight
- Material
- Copper-Free Aluminum (Body/Sleeve/Nut), Stainless Steel (Grounding Spring), Halogen-Free LSF-TPE (Bushing), Nylon (End Stop Washer), Viton (O-Ring)
- Application
- Hazardous Location
- Approval
- UL 514B/2225, CSA C22.2
- Additional Information
- Continuous Operating Temperature -60 to 110°C
- Type
- Straight, 2-Piece
- Throat Type
- O-Ring, Bushing
- Cable Type
- Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor
- Cable Size
- 1.65 to 2 Inch
- Catalog Description
- TMC2 Series Cable Gland Connector, Size: 1-1/2 in, Material: Copper-Free Aluminum, Enclosure: IP66, NEMA Rating: NEMA 4X, Temperature Rating: -60 to 110°C, Connection: NPT, Dimensions: 2-3/4 in Across Flat × 2.97 in Across Corner × 3.66 in
- Full Technical Description
- 2-Piece, Threaded, Straight Type; Copper-Free Aluminum (Body/Sleeve/Nut), Stainless Steel (Grounding Spring), Halogen-Free LSF-TPE (Bushing), Nylon (End Stop Washer), Viton (O-ring) Material; 3.63 Inch; 1-1/2 Inch Hub Size; Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armored, Continuously Welded Armored Cable Type; 1.65–2 Inch Cable Size; UL 514B/2225, CSA (Canada and US), CSA C22.2 Approval; Hazardous Location Application; 2.97 Inch Diameter; Explosionproof, Water Tight; Bushing, Gland Nut, O-ring Throat Type; Cable Armor Diameter 1.57–1.7 Inch (Stop in), 1.7–1.88 Inch (Stop Out); Enclosure Rating Class I Div 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, Class I Zone 1 and 2 IIC, NEMA 4X, IP66; Operating Temperature Rating -76 to 230°F; Applicable Standard NEC/CEC; TMC2 Model
- Manufacturer
- Appleton Electric
- Manufacturer Brand
- Appleton Electric
- Product Description
- Appleton TMC2-150200A MC Cable Gland
- Sub-Category
- Explosionproof Armored/Metal Clad Cable Connector
- UNSPSC
- 39121431
- Unique Product Key
- 5747061
- Comm Code Enhanced
- 24200
- Shipping weight
- 1.25 lb (0.57 kg)
- Package dimensions (L × W × H)
- 3.74 × 2.83 × 2.83 in (9.5 × 7.2 × 7.2 cm)
- Category
- Cable Management,Connectors
- Availability
- In stock
- Price
- $59.99 CAD
