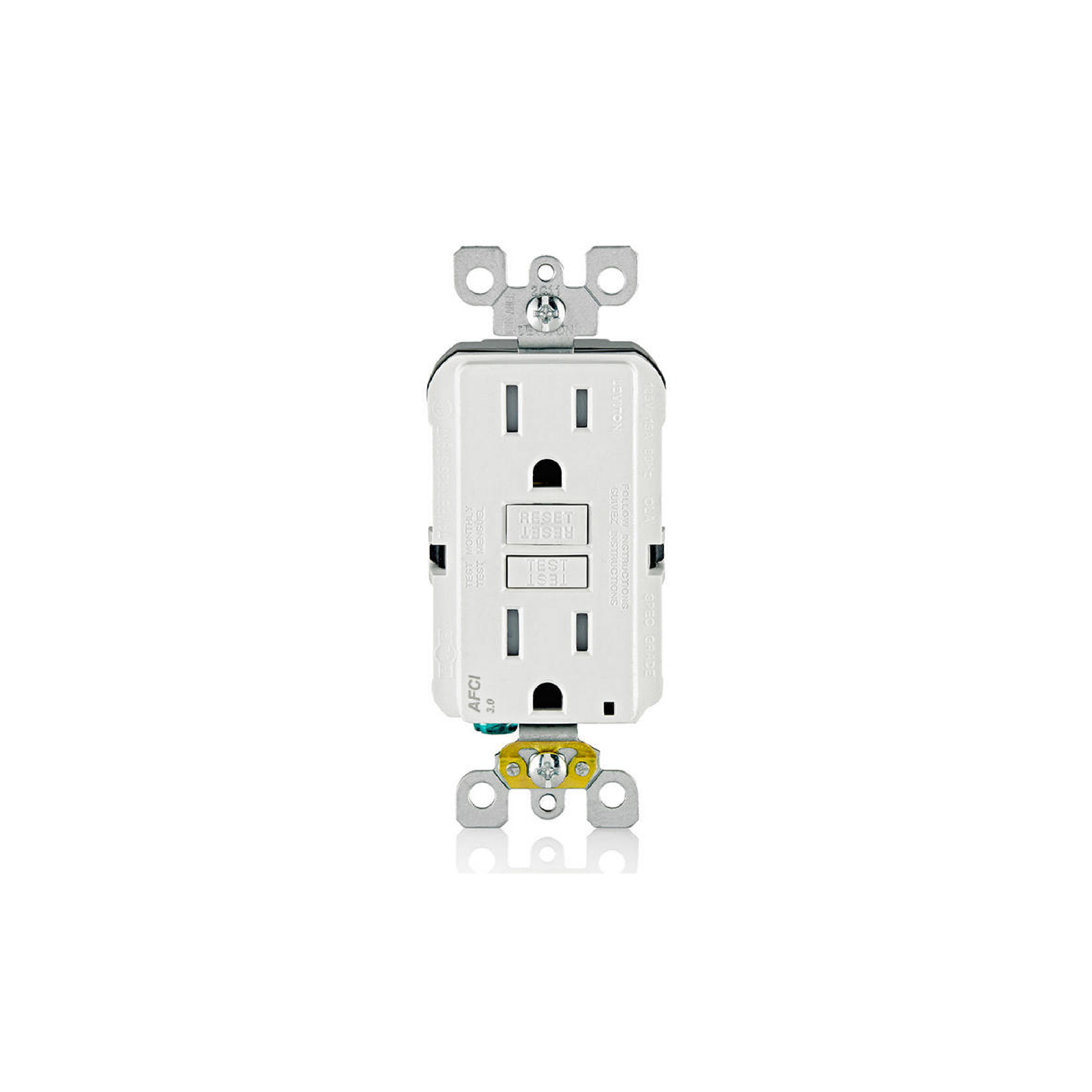

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self grounding clip included – WhiteThe SmartlockPro® Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home’s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home’s electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code® in many areas of the home.
| Specification | Details |
| Body Material | Polycarbonate |
| Face Material | Thermoplastic |
| Clamps | Brass |
| Grounding Screw | Plated Steel |
| Line Contacts |
Brass Double-Wipe, 0.031" Thick
|
| Strap Material |
Galvanized Steel
|
| Yoke |
Zinc-Plated Steel
|
| Notes |
Includes Wallplate
|
| Product ID |
Ratings permanently marked on device
|
| Terminal Accommodation | 14–10 AWG |
| Terminal ID |
Brass-Hot, Green-Ground, Silver-Neutral
|
| Terminal Screws | Plated Steel |
| Mechanical Specifications |
Amperage: 15 A, Color: White, Feature: Tamper-Resistant, Grounding: Self-Grounding, NEMA: 5-15R, Poles: 2, Wire: 3
|
| Series | AFTR1 |
| Standards and Certifications |
UL/CSA, NEMA WD6, NEMA WD1
|
| Termination | Back & Side |
| Screw Terminal Torque | 14–18 in-lbs |
| Voltage | 125 VAC |
| Operating Temperature | -35°C to +66°C |
| Flammability |
Rated V-2 per UL 94
|
| Warranty | 2-Year Limited |
