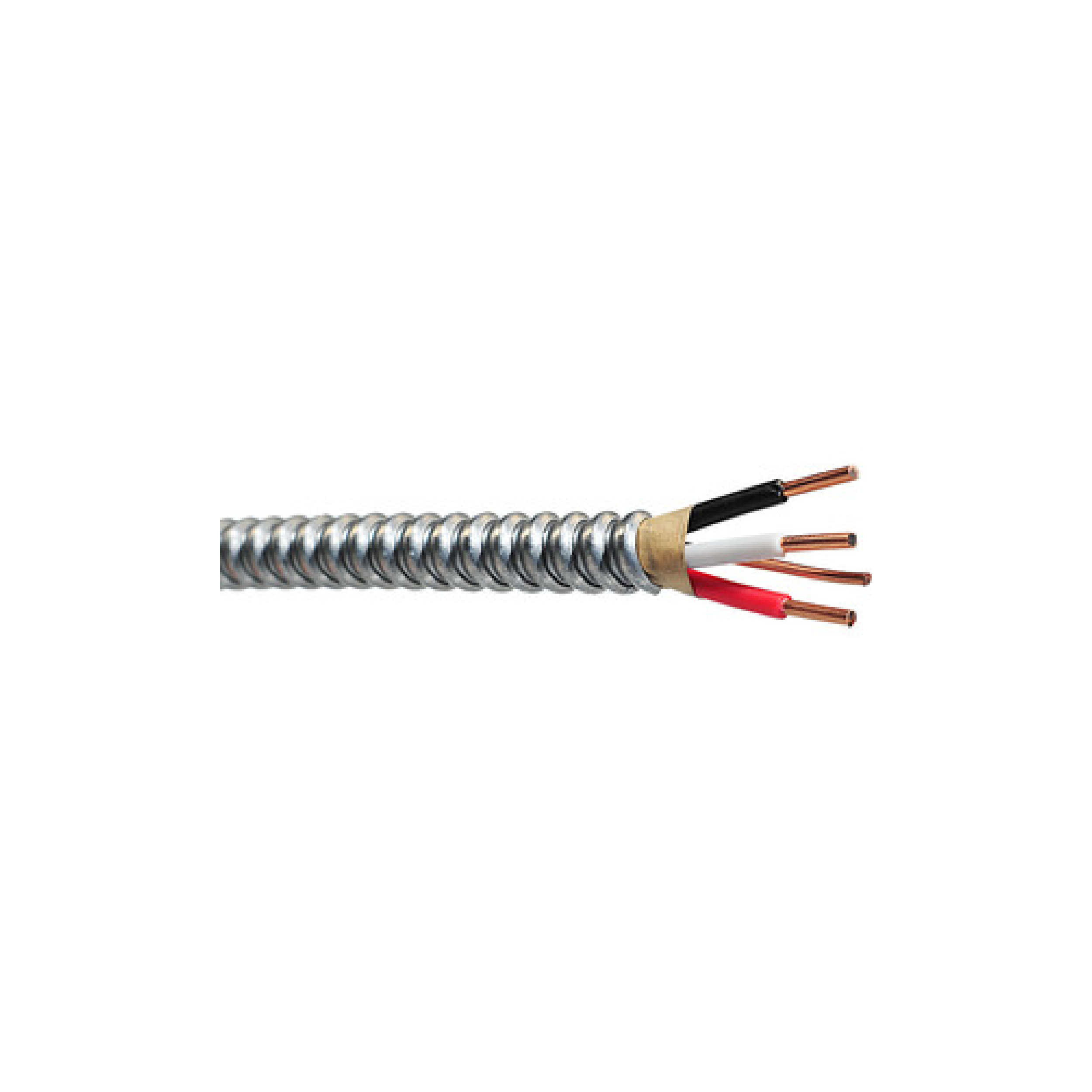

Wire BX 6/3C Copper Armored (AC90)

Description

Specification	Details
Cable Type	AC 90 Copper
Stranding	7 Strand
Number of Conductors / Pairs	3 Conductors plus bonding wire
Cable Size (AWG)	#6 AWG
Conductor Insulation	RW90 XLPE Conductor Insulation
CSA / UL Approved	CSA Approved
Unit Quantity	150
Jacketing	Interlocked Aluminum Armour Jacket
Voltage	600 VAC
Description	Armoured Cable for Dry Locations
Price Per	KM
Nominal Outside Diameter (O.D.)	0.840 in (21.3 mm)
Put-Up	Reel
Conductor Material	Copper Conductor
Weight/Per	475 lbs/Mft
Unit of Measure	Meter
Minimum Operating Temperature	-40 °C
Type of Product	AC90
Maximum Operating Temperature	90 °C
