WIRE RW90 1/0 ALUMINUM WHITE
$3.99/each

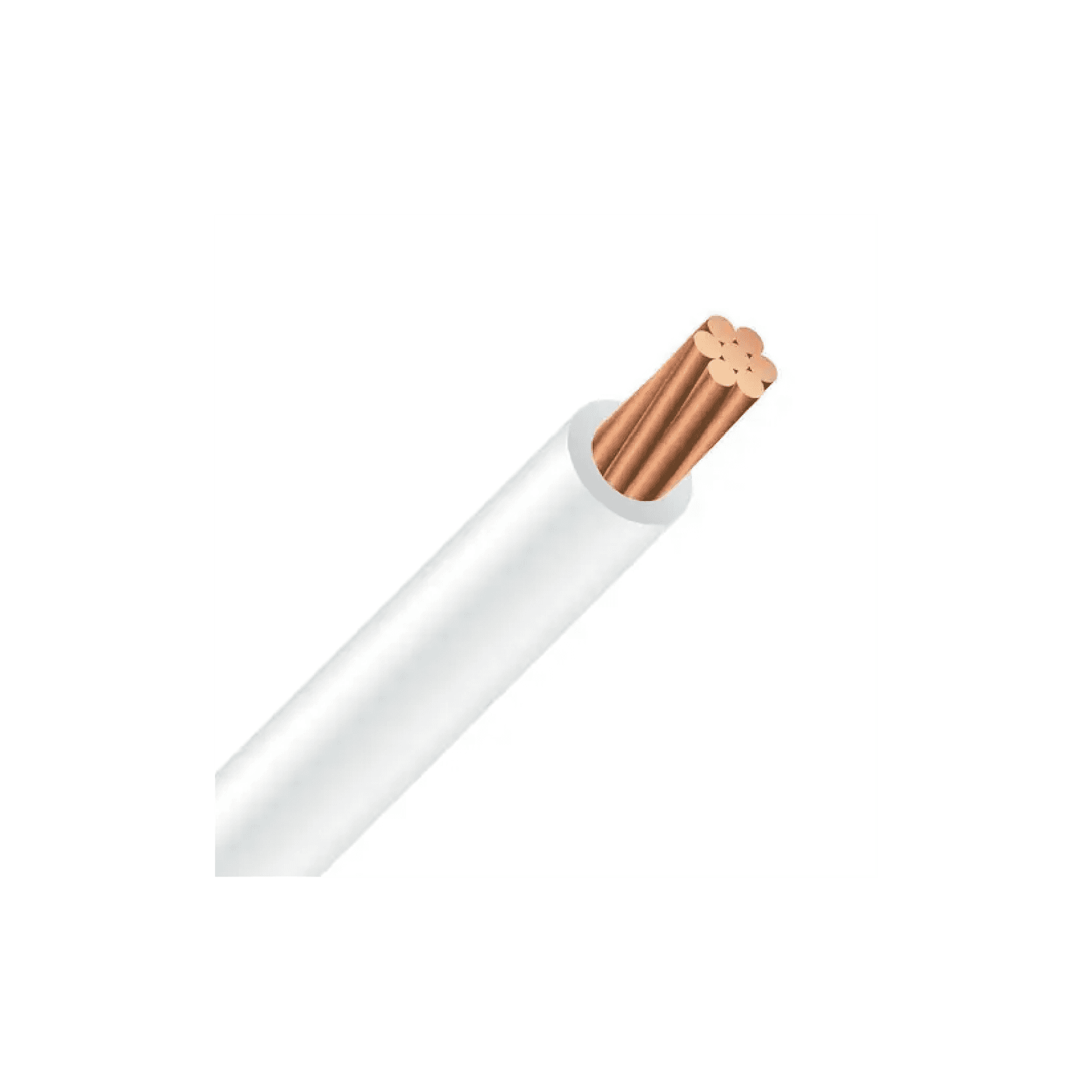

Wire RW90 #12-1C Copper White
SKU: 2431
$0.99/each · CAD
Delivery
Not available for delivery
Pick up
5118 Everest Drive
In StockPickup only
Pickup only. This item is collected at our Mississauga or Hamilton branch and cannot be delivered. If it is in your cart, the whole order is picked up at the branch, so order items you need delivered separately.
1
Curbside Pickup
Order online
Secure Payment
Protected checkout
Product Overview
Copper Conductor, 600 V, 90 °C MAX – 40 °C MIN, Cross Linked Polyethylene (XLPE) Single copper conductor with low temperature, moisture resisting XLPE (cross linked polyethylene) insulation. This product meets the current RoHS requirements. No lead is added or used in manufacturing.
- SKU
- 2431
- Manufacturer
- Southwire
- Brand Name
- Approved Vendor
- Item Name
- RW90 Building Wire
- Type
- Sunlight-Resistant
- Wire Gauge Size
- 12 AWG
- Conductor Type
- Solid
- Number of Strands
- 1
- Length
- 300 m
- Conductor Material
- Copper
- Insulation Material
- Cross-Linked Polyethylene (XLPE)
- Jacket Color
- White
- Voltage Rating
- 600 V
- Outside Diameter
- 0.141 in
- Insulation Thickness
- 0.03 in
- Amperage Rating
- - 35 A at 75 °C, 40 A at 90 °C (Open Air)- 25 A at 75 °C, 30 A at 90 °C (Cable in Conduit)
- Weight per 1000 ft
- 25 lb
- Temperature Rating
- −40 °C to 90 °C
- Standards / Certification
- CSA C22.2 No. 38, CSA FT4 Flame Test, CSA Certified (File LL90458), Lead-Free, RoHS Compliant
- Application
- For open wiring and use in raceways (except cable troughs and ventilated flexible cableways) in dry or wet locations
- Delivery
- Pickup only: collected at a branch
- Category
- RW90,Wire & Cable
- Availability
- In stock
- Price
- $0.99 CAD
New
No reviews yet
Loading reviews…
Write a review
Description
Product Overview
Copper Conductor, 600 V, 90 °C MAX – 40 °C MIN, Cross Linked Polyethylene (XLPE) Single copper conductor with low temperature, moisture resisting XLPE (cross linked polyethylene) insulation. This product meets the current RoHS requirements. No lead is added or used in manufacturing.
Specifications
- SKU
- 2431
- Manufacturer
- Southwire
- Brand Name
- Approved Vendor
- Item Name
- RW90 Building Wire
- Type
- Sunlight-Resistant
- Wire Gauge Size
- 12 AWG
- Conductor Type
- Solid
- Number of Strands
- 1
- Length
- 300 m
- Conductor Material
- Copper
- Insulation Material
- Cross-Linked Polyethylene (XLPE)
- Jacket Color
- White
- Voltage Rating
- 600 V
- Outside Diameter
- 0.141 in
- Insulation Thickness
- 0.03 in
- Amperage Rating
- - 35 A at 75 °C, 40 A at 90 °C (Open Air)- 25 A at 75 °C, 30 A at 90 °C (Cable in Conduit)
- Weight per 1000 ft
- 25 lb
- Temperature Rating
- −40 °C to 90 °C
- Standards / Certification
- CSA C22.2 No. 38, CSA FT4 Flame Test, CSA Certified (File LL90458), Lead-Free, RoHS Compliant
- Application
- For open wiring and use in raceways (except cable troughs and ventilated flexible cableways) in dry or wet locations
- Delivery
- Pickup only: collected at a branch
- Category
- RW90,Wire & Cable
- Availability
- In stock
- Price
- $0.99 CAD
