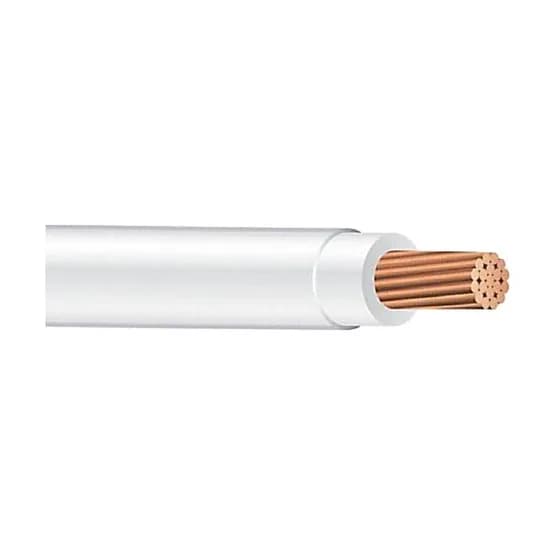

Wire RW90 #2 Copper White

Wire RW90 #2 Copper White

SKU: 2720

SKU: 2720 Categories: RW90, Wire & Cable

Specification	Details
Brand / Sub Brand	Southwire / SIMpull®
Type / Item Name	RW90 Building Wire
Wire Gauge Size	2 AWG
Stranded / Solid	Stranded
Number of Strands	7
Conductor Material	Copper
Insulation Material	XLPE (Cross-Linked Polyethylene)
Jacket Color	White
Voltage Rating	600 V
Outside Diameter	0.376 in
Insulation Thickness	0.045 in
Amperage Rating	170 A at 75 °C, 190 A at 90 °C
Weight per 1000 ft	228 lb
Temperature Rating	-40 °C to 90 °C
Standards	CSA Spec. C22.2 No. 38, CSA FT4 – Flame Test Rating, CSA Certified (File LL90458), RoHS Compliant
Application	For Open Wiring and Use in Raceways in Dry or Wet Locations
