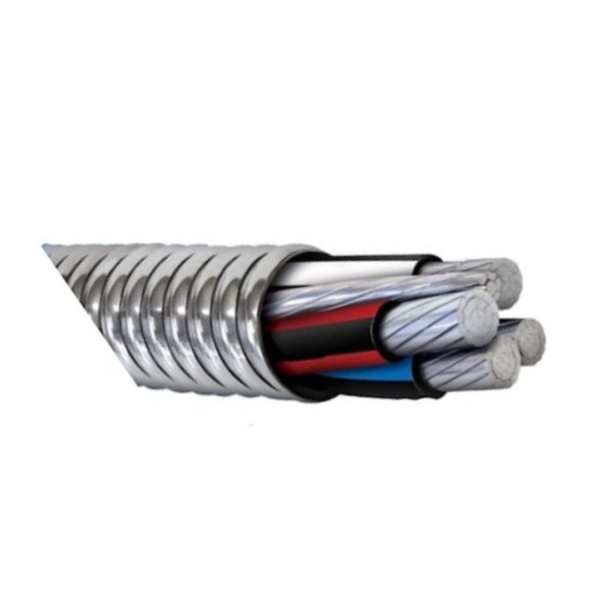

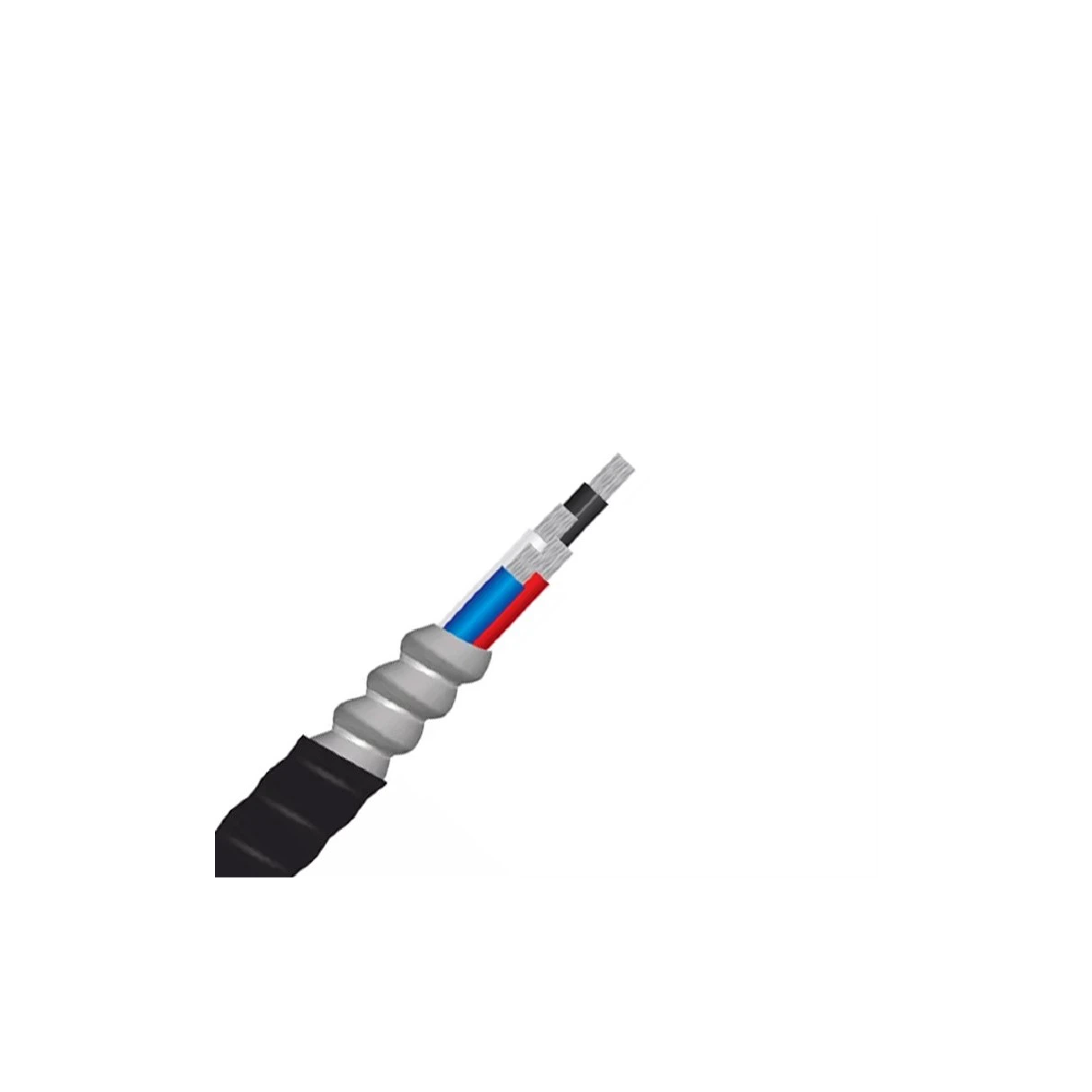

Wire 2/0-3C Aluminum Black ACWU

Specification	Details
Brand Name	Prysmian Group
Sub Brand	NUAL®
Item Name	ACWU90 Cable
Type	Armored
Wire Gauge Size	2/0 AWG
Number of Conductors	3
Stranding	Stranded
Length	300 m
Conductor Material	Aluminum
Armor Material	Aluminum
Voltage Rating	600 V
Outside Diameter	1.33 in
Insulation Material	XLPE
Insulation Thickness	0.05 in
Jacket Material	PVC
Jacket Thickness	0.06 in
Weight	1182 kg/km (794 lb/1000 ft)
Temperature Rating	-40 to 90 °C
Standards	ASTM B800/B801/B836, CSA #LL28117 Certified, FT-1 and FT-4 Rated, OSHA Certified, RoHS Compliant
