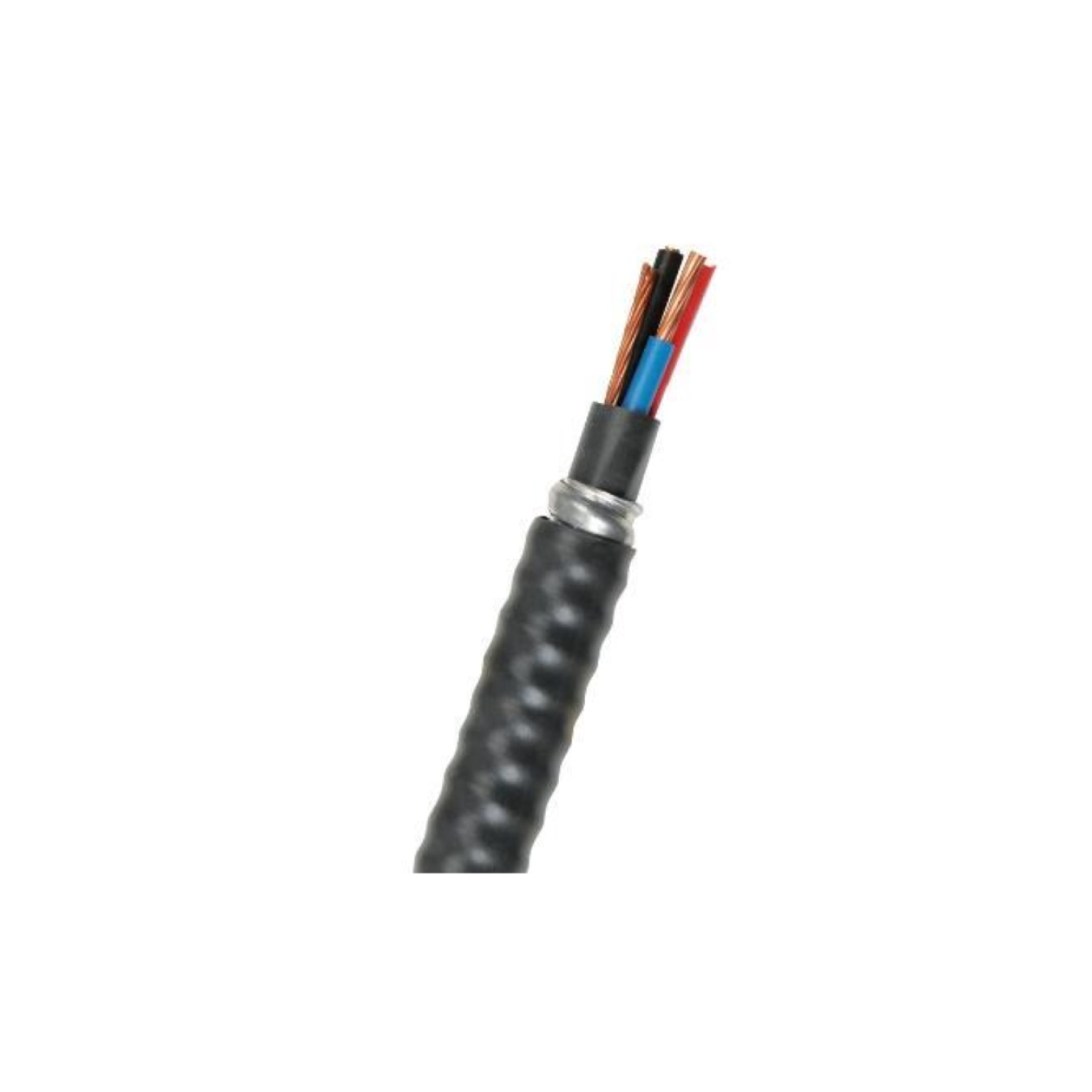

Wire #4/3C Copper Black (TECK90)

Specification	Details
Brand Name	Electro Cables
Sub Brand	ElectroPower®
Item Name	TECK90 Cable
Wire Gauge Size	4 AWG
Number of Conductors	3
Stranding	Stranded
Length	150 m
Conductor Material	Copper
Armor Material	Aluminum
Voltage Rating	1000 V
Outside Diameter	1.22 in
Insulation Material	XLPE
Insulation Thickness	0.06 in
Jacket Material	PVC
Jacket Thickness	0.895 in
Color Code	Black/Blue/Red/Solid Black
Weight	1391 kg/km
Temperature Rating	-40 to 90 °C
Standards	CSA C22.2 No. 38, No. 131, No. 174, No. 2556, FT4 Rated
Application	Dry, damp or wet locations; in-ceiling air-handling plenums; direct burial; exposed/concealed wiring; raceways; ventilated/non-ventilated & ladder-type cable trays
